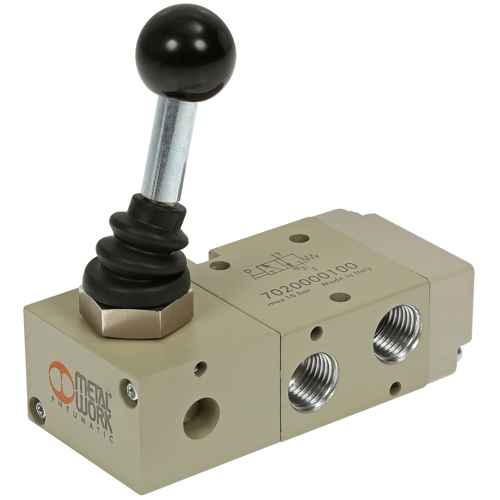

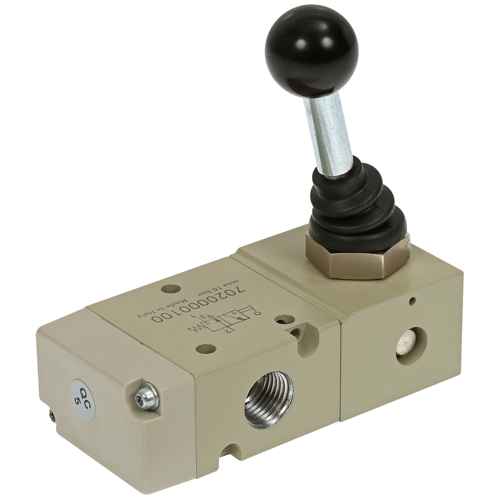

Mechanical Valve 3/2 1/4 90 Lever/Spring Mav33Lesnc

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP7020000100

  ManufacturerMETAL WORK

  Characteristics

  - 70 MAV series
  - material valve body aluminum, coil nickel-plated aluminum, seals NBR
  - thread G 1/4"
  - working pressure 2.5 - 10 bar (servo-assisted version)
  - max. flow at 6 bar (pressure drop 0.5 bar) 750 Nl/min
  - max. flow at 6 bar (pressure drop 1.0 bar) 1100 Nl/min
  - operating temperature -10...+60 °C
  - media: lubricated or unlubricated filtered compressed air

  MAV33LESNC
  - family MAV: manual control
  - size 3: 1/4"

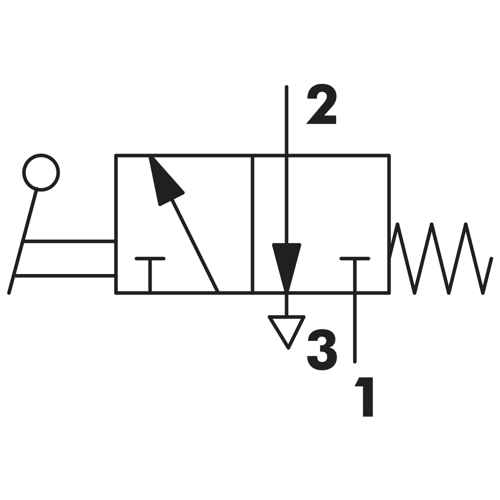

  - function 3: 3/2
  - activation 14 LE: 90° lever
  - return 12 S: mechanical spring
  - other specifications NC: normally closed
