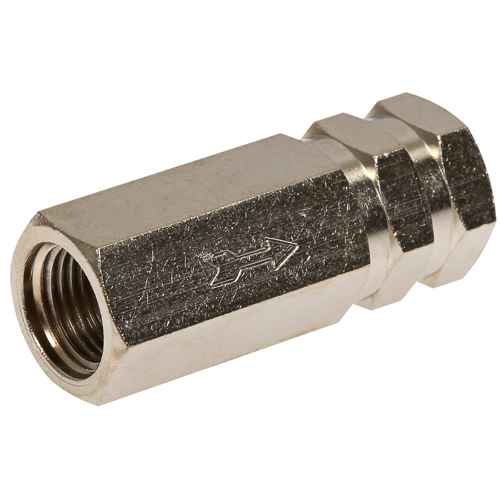

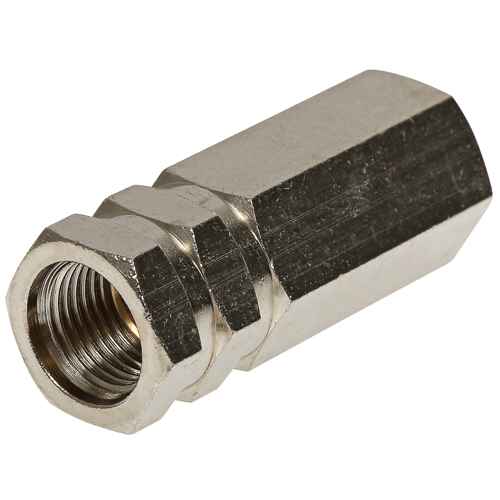

Check Valve 1/8 Nominal Diameter Ø 5.2mm Thread G 1/8"

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP3601000001

  ManufacturerMETAL WORK

  Characteristics

  - VNR series

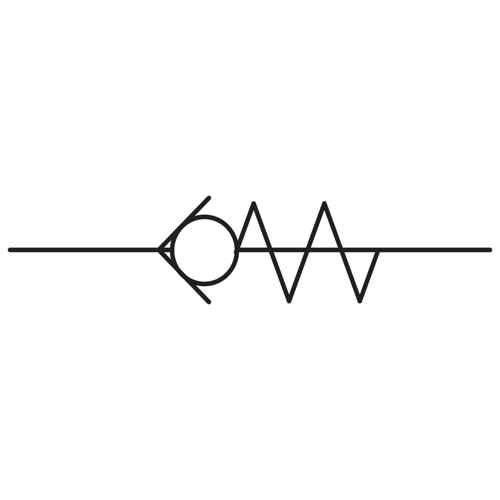

  - check valve prevents flow in one direction and allows flow freely in the other direction
  - material valve body OT58 brass, O-ring NBR
  - thread G 1/8"
  - nominal diameter Ø 5.2 mm
  - nominal flow 900 Nl/min
  - operating pressure 2 - 10 bar
  - opening pressure 0.05 bar
  - operating temperature -10...+70 °C
  - media: lubricated or non-lubricated filtered compressed air

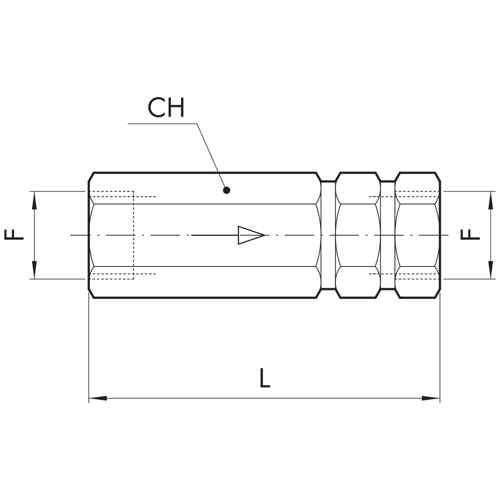

  Dimensions (mm):
  - F 1/8"
  - L 35
  - CH 13
