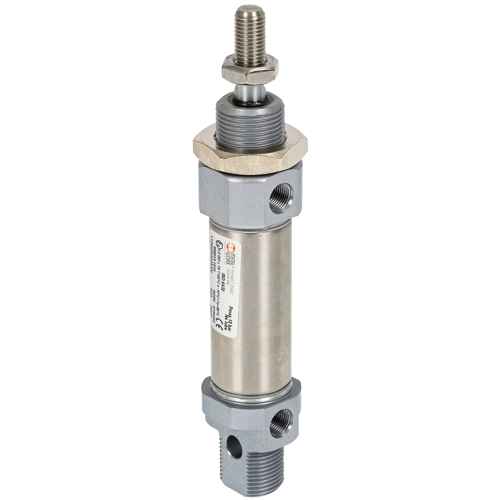

Pneumatic Cylinder 25X25 Mini Iso6432 Double-Acting

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP1122525

  ManufacturerMETAL WORK

  Characteristics

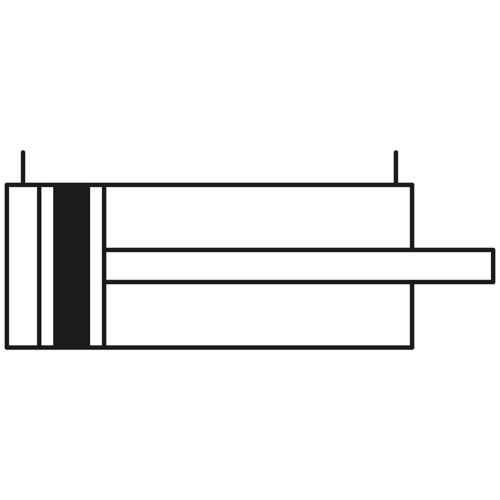

  - 2-acting mini cylinder ISO 6432
  - with magnetic piston
  - material piston rod C45 steel, cylinder tube AISI 304, seal NBR
  - thread M22x1.5
  - piston Ø 25 mm
  - stroke 25 mm
  - max. working pressure 10 bar
  - operating temperature -10...+80 °C
  - media: lubricated or non-lubricated filtered compressed air (if lubricated air is used, lubrication must be continuous)
