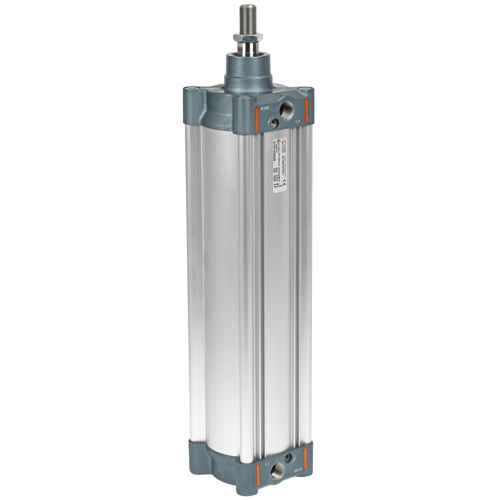

Pneumatic Cylinder 100X320 S3 Iso15552 2-Works

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP121100320

  ManufacturerMETAL WORK

  Characteristics

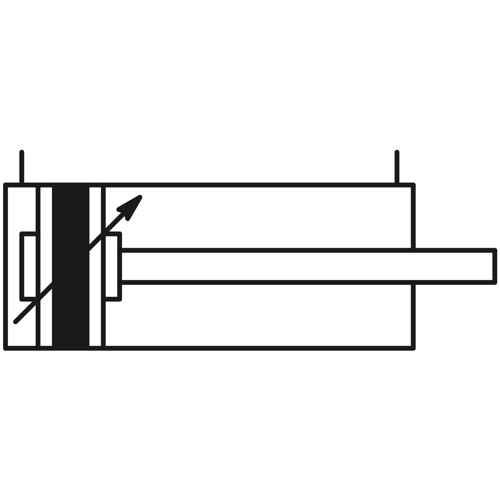

  - 2-acting standard cylinder ISO 15552, series 3
  - with magnetic piston and adjustable end-position damping
  - material piston rod C45 steel, cylinder tube anodized aluminum, seal NBR
  - piston Ø 100 mm
  - rod Ø 25 mm
  - stroke length 320 mm
  - mounting screw M10
  - max. working pressure 10 bar
  - operating temperature -10...+80 °C
  - media: lubricated or non-lubricated filtered compressed air (if using lubricated air, lubrication must not fail)
