  Product IDPPS1MF2534

  ManufacturerPREVOST

  Characteristics

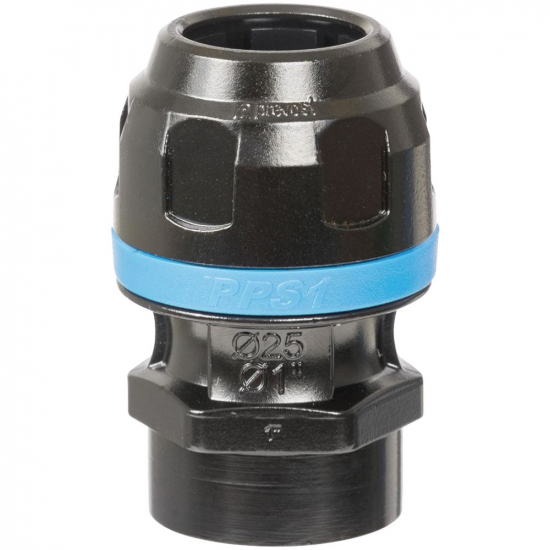

  - Prevost coupling with internal thread PPS1 MF
  - the new PPS Grip Concept is based on a stainless steel ring with teeth that grip on aluminum
  - thanks to the unique sealing connection, it is completely leak-proof even under harsh conditions
  - material 100% aluminum, EN AB 46100
  - standard DESP 2014/68/EU REACH
  - operating temperature -20...+80 °C
  - media compressed air
  - working pressure 0 - 16 bar
  - vacuum -0.98 bar
  - thread G 1"
  - pipe outer diameter Ø 25 mm

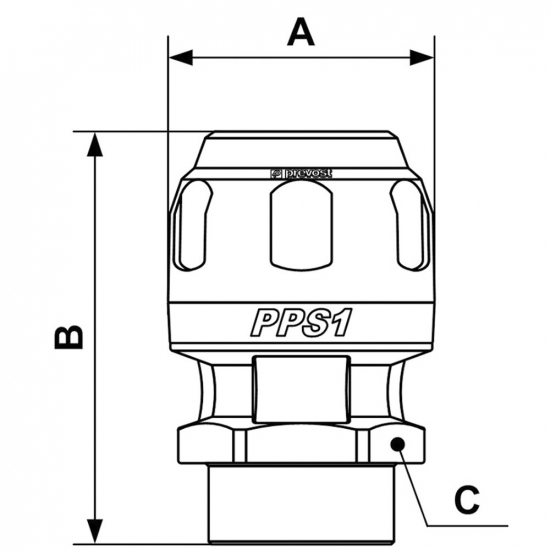

  - A 46 mm
  - B 72 mm
  - C 38 mm
