  Product IDPPS19C40

  ManufacturerPREVOST

  Characteristics

  - Prevost 90° connector PPS1 9C
  - the new PPS Grip Concept is based on a stainless steel ring with teeth that attach to aluminum
  - thanks to the unique sealing connection, it is completely leak-proof even under harsh conditions
  - material 100% aluminum, EN AB 46100
  - standard DESP 2014/68/UE REACH
  - operating temperature -20...+80 °C
  - media compressed air
  - working pressure 0 - 16 bar
  - vacuum -0.98 bar
  - outer pipe diameter Ø 40 mm

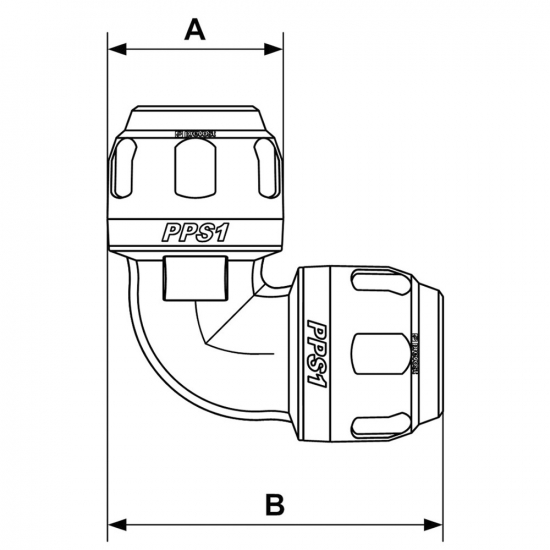

  - A 68 mm
  - B 135 mm
