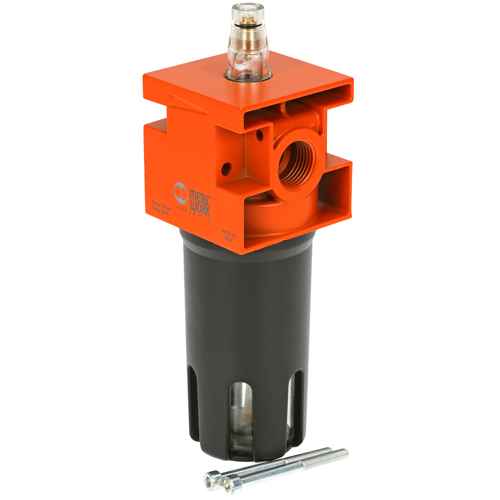

Pneumatic Lubricator 1/2 Lub New Deal

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP1423001

  ManufacturerMETAL WORK

  Characteristics

  - New Deal lubricator
  - Adjust the amount of lubrication according to flow
  - activated when the flow is low
  - mist lubrication
  - thread G 1/2 "
  - Tank volume is 150 cm³
  - max. operating pressure 18 bar
  - Flow at 6 bar (pressure drop 0.5 bar) 3000 Nl / min
  - flow at 6 bar pressure (pressure drop 1 bar) at 4300 Nl / min
  - max. operating temperature +50 ° C
  - medium: filtered compressed air
  - fixing screws M4 x 55
  - Installation upright
  - weight 0.9 kg

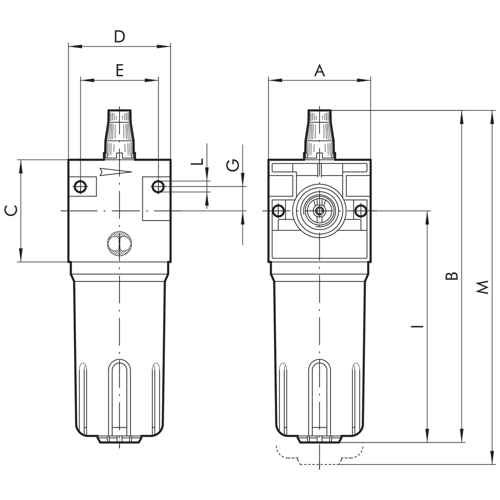

  Dimensions (mm):
  - A 60
  - B 195
  - C 60
  - D 60
  - E 46
  - G 14
  - 136
  - M4
  - M 220
