Standard coupling 40mm-1.1/4 BSP INV PPS1

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDPPS1MF4042

  ManufacturerPREVOST

  Characteristics

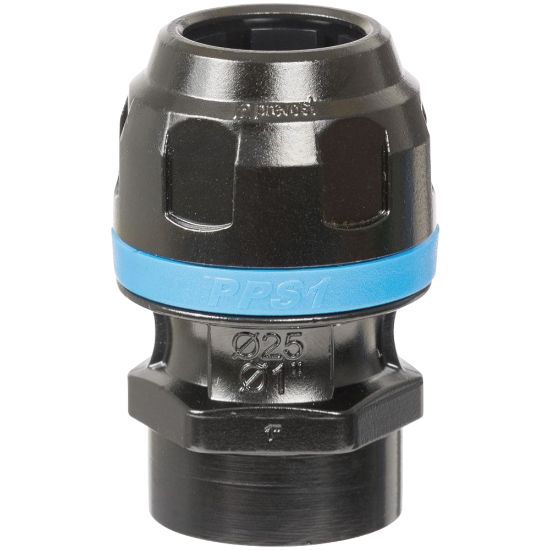

  - Prevost coupling with internal thread PPS1 MF
  - the new PPS Grip Concept is based on a ring in stainless steel with teeth that attach to aluminum
  - thanks to the unique sealing, the connection is completely leak-proof even under harsh conditions
  - material 100% aluminum, EN AB 46100
  - standard DESP 2014/68/UE REACH
  - operating temperature -20...+80 °C
  - media compressed air
  - operating pressure 0 - 16 bar
  - vacuum -0.98 bar
  - thread G 1 1/4"
  - pipe outer diameter Ø 40 mm
  - A 68 mm
  - B 98 mm
  - C 57 mm
