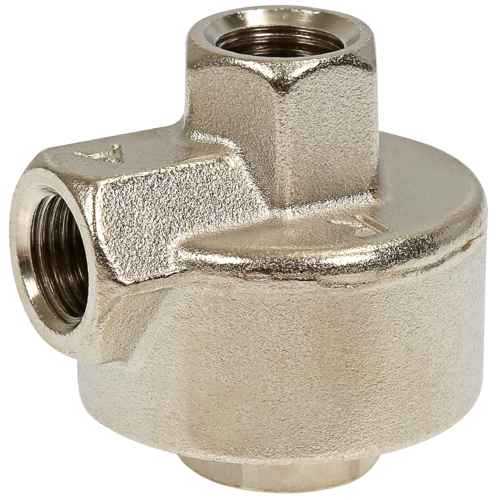

Quick Exhaust Valve 1/8 Vsr

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDMWP9101201

  ManufacturerMETAL WORK

  Characteristics

  - VSR series
  - a new, compact and lighter model
  - used to quickly exhaust air from the cylinder, increasing speed
  - material valve housing nickel-plated brass, O-ring NBR
  - thread G 1/8"
  - max. pressure 12 bar
  - min. pressure 0.5 bar
  - nominal flow (P->A) 550 Nl/min (2.5 bar) / 700 Nl/min (4 bar) / 900 Nl/min (6.3 bar)
  - exhaust flow (A->R) 800 Nl/min (2.5 bar) / 1200 Nl/min (4 bar) / 1800 Nl/min (6.3 bar)
  - weight 80 g

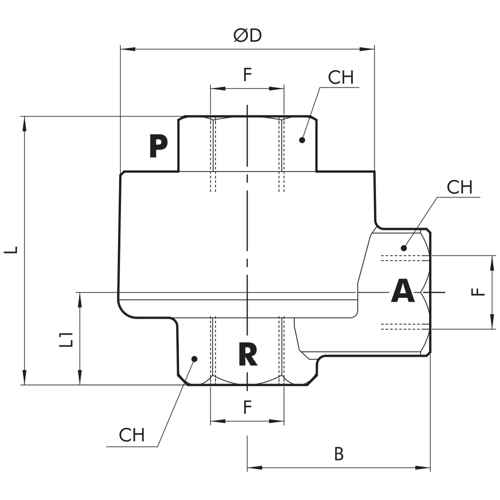

  Dimensions (mm):
  - F 1/8"
  - B 18.5
  - D 29.5
  - CH 14
  - L 32.5
  - L1 13.4
