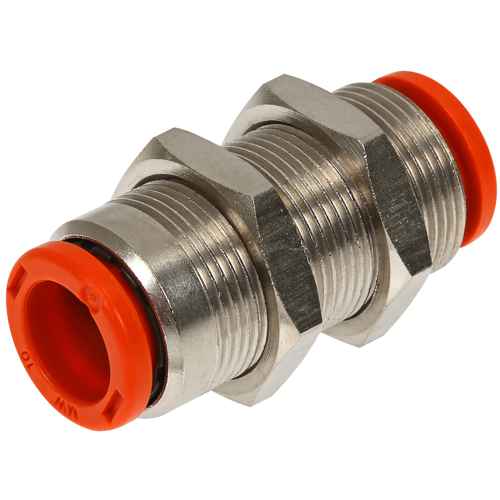

Push-In Couplings 6mm Bulkhead

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWR1006

  ManufacturerMETAL WORK

  Characteristics

  - nozzle passage (R10)
  - material brass
  - O-ring seal
  - working pressure -0.99 - 16 bar
  - operating temperature -20...+80 °C
  - media vacuum, compressed air
  - recommended tubes: Rilsan PA 11, nylon 6, polyamide 12, polypropylene

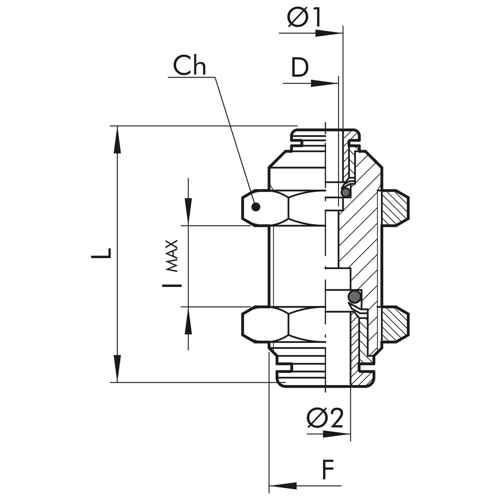

  Dimensions (mm):
  - tube Ø1 6
  - tube Ø2 6
  - female thread M13x1
  - CH 16
  - L 33
  - D 4.5
  - I max. 12
