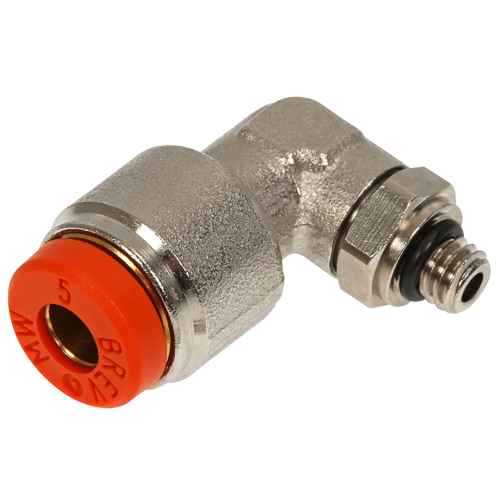

Push-In Couplings 5Mm-M5 Angle Ext

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWR3105M5

  ManufacturerMETAL WORK

  Characteristics

  - swivel angle coupling external thread (R31)
  - material brass
  - O-ring seal
  - working pressure -0.99 - 16 bar
  - operating temperature -20...+80 degrees Celsius
  - media vacuum, compressed air
  - recommended pipes: Rilsan PA 11, nylon 6, polyamide 12, polypropylene

  Dimensions (mm):
  - tube Ø 5
  - thread M5
  - CH 9
  - E 9.9
  - E1 13.5
  - L 22.8
  - L1 17.5
  - P 4
