Push-In Couplings 5Mm-1/4 Angle Ext

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWR310504

  ManufacturerMETAL WORK

  Characteristics

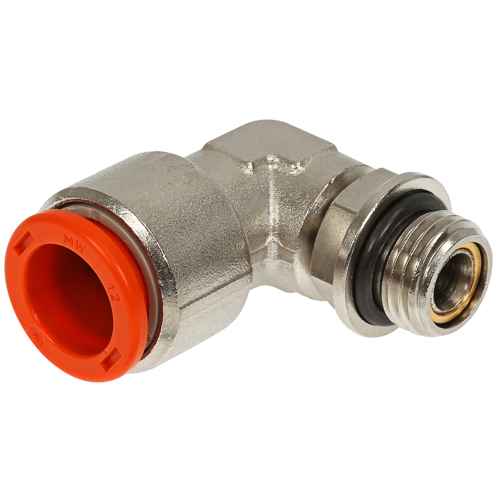

  - swivel angle coupling external thread (R31)
  - material brass
  - O-ring seal
  - working pressure -0.99 - 16 bar
  - operating temperature -20...+80 degrees Celsius
  - media vacuum, compressed air
  - recommended pipes: Rilsan PA 11, nylon 6, polyamide 12, polypropylene

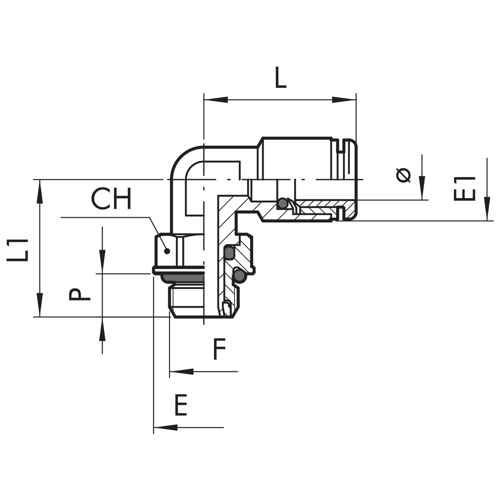

  Dimensions (mm):
  - tube Ø 5
  - thread G 1/4"
  - CH 14
  - E 18
  - E1 13.5
  - L 22.8
  - L1 24.5
  - P 8
