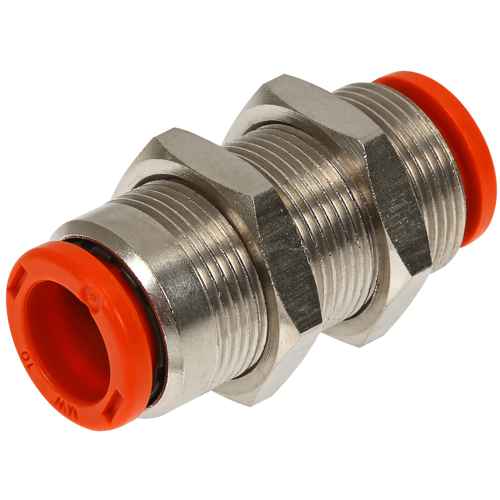

Push-In Couplings 4mm Bulkhead

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWR1004

  ManufacturerMETAL WORK

  Characteristics

  - nozzle passage (R10)
  - material brass
  - O-ring seal
  - working pressure -0.99 - 16 bar
  - operating temperature -20...+80 °C
  - media vacuum, compressed air
  - recommended tubes: Rilsan PA 11, nylon 6, polyamide 12, polypropylene

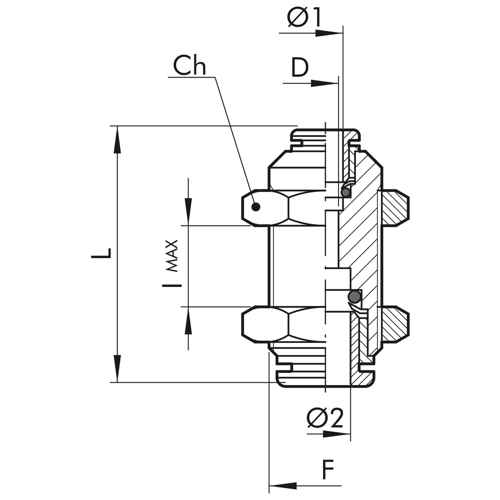

  Dimensions (mm):
  - tube Ø1 4
  - tube Ø2 4
  - female thread M11x1
  - CH 13
  - L 30.6
  - D 2.5
  - I max. 11
