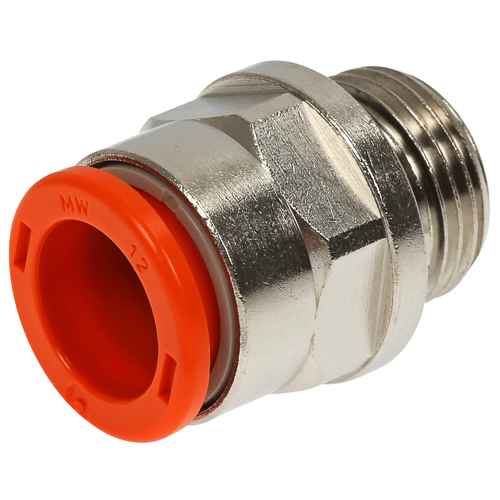

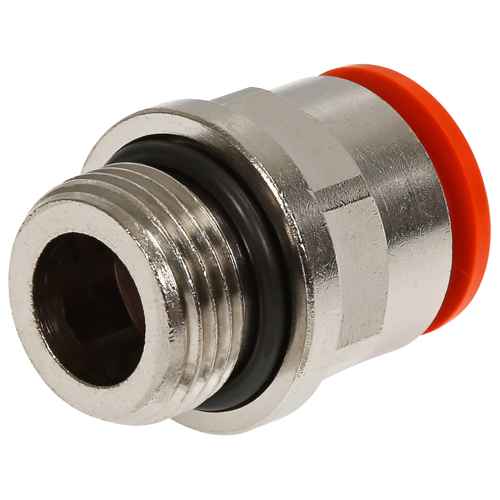

Push-In Couplings 4mm-1/8 Straight Ext

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product IDMWR10402

  ManufacturerMETAL WORK

  Characteristics

  - straight coupling external thread (RL1)
  - material brass
  - O-ring seal
  - working pressure -0.99 - 16 bar
  - operating temperature -20...+80 °C
  - media vacuum, compressed air
  - recommended tubes: Rilsan PA 11, nylon 6, polyamide 12, polypropylene

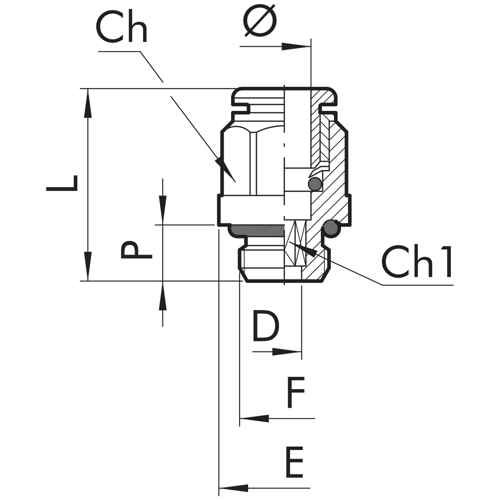

  Dimensions (mm):
  - tube Ø 4
  - female thread G 1/8"
  - CH 10
  - CH1 3
  - P 6
  - L 18
  - D 3.1
  - E 14
