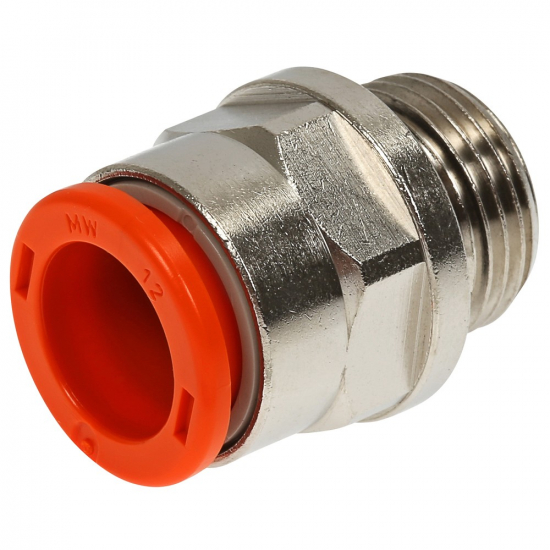

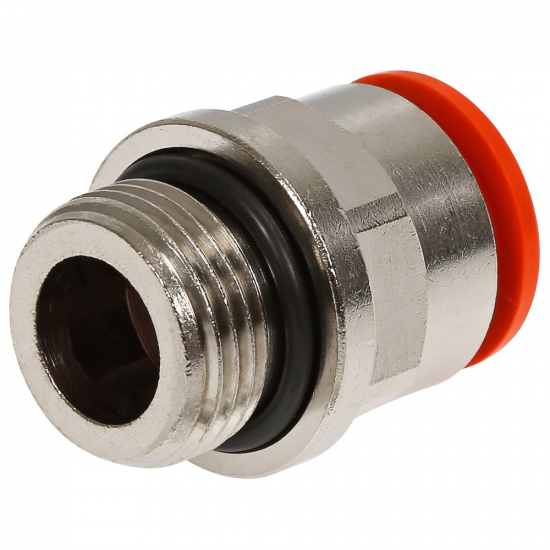

PUSH-IN COUPLINGS 12MM-1/4 STRAIGHT EXT

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWR11204

  ManufacturerMETAL WORK

  Characteristics

  - straight coupling external thread (RL1)
  - material brass
  - O-ring seal
  - working pressure -0.99 - 16 bar
  - operating temperature -20...+80 °C
  - media vacuum, compressed air
  - recommended tubes: Rilsan PA 11, nylon 6, polyamide 12, polypropylene

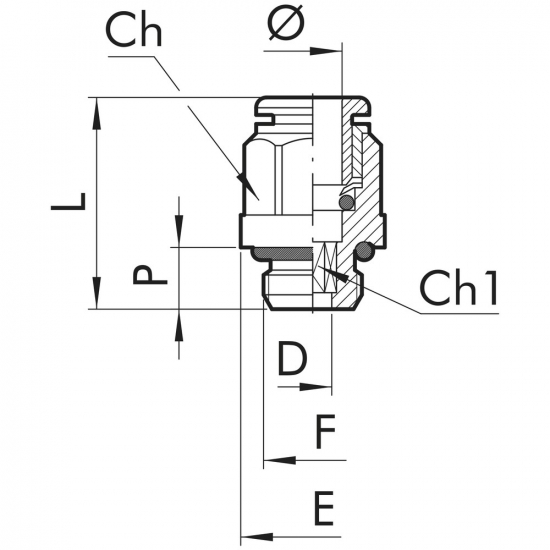

  Dimensions (mm):
  - tube Ø 12
  - F thread G 1/4"
  - CH 19
  - CH1 7
  - P 8
  - L 30.5
  - D 7.2
  - E 21
