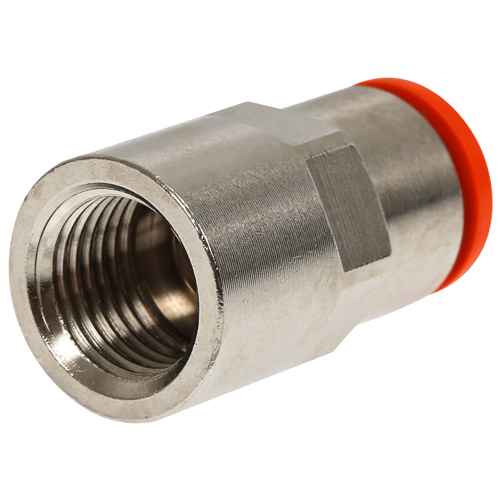

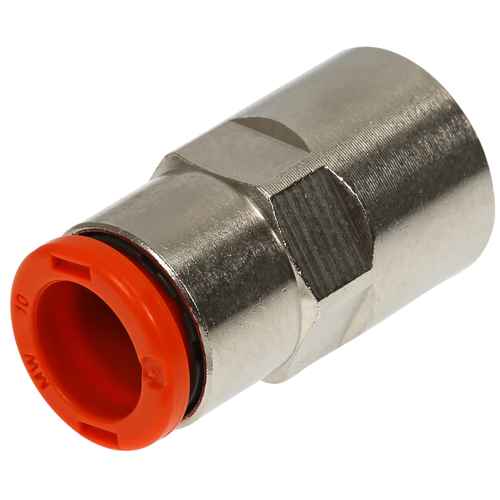

Push-In Couplings 10Mm-3/8 Straight Int

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWR21006

  ManufacturerMETAL WORK

  Characteristics

  - straight coupling internal thread (RL2)
  - material brass
  - O-ring seal
  - working pressure -0.99 - 16 bar
  - operating temperature -20...+80 °C
  - media vacuum, compressed air
  - recommended tubes: Rilsan PA 11, nylon 6, polyamide 12, polypropylene

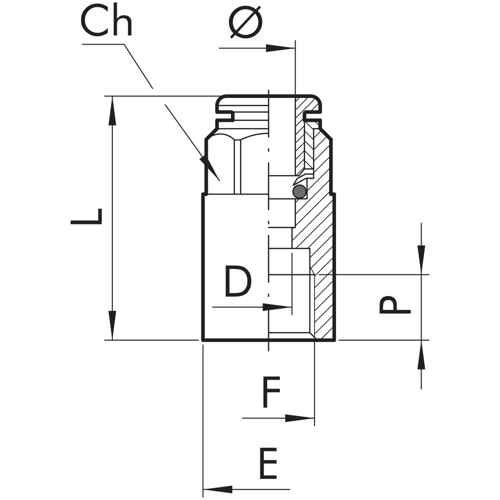

  Dimensions (mm):
  - tube Ø 10
  - F thread G 3/8"
  - CH 16
  - P 10
  - L 36.8
  - D 8
  - E 20.8
