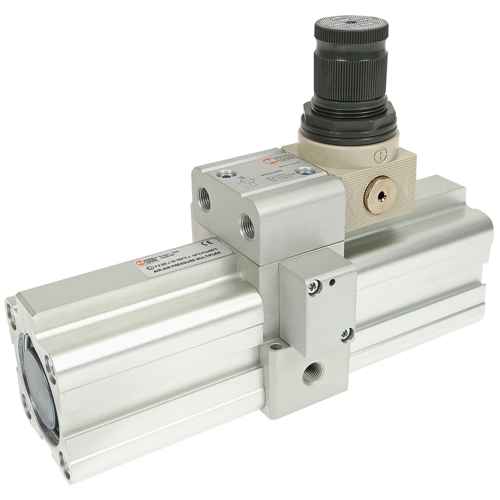

Pressure Booster 40Mm Regulator

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDMWP9002200

  ManufacturerMETAL WORK

  Characteristics

  - the pressure booster, or booster, is an automatic system that compresses air to provide an outlet pressure that is double the inlet pressure
  - equipped with check valves to ensure that the outlet pressure remains constant even when the air is shut off
  - this means it is necessary to shut off the air and vent the system before using the booster again
  - it is recommended to install a tank before the booster to avoid fluctuations in the outlet pressure
  - cylinder Ű 40 mm
  - thread G 1/8"
  - working pressure 2 - 10 bar
  - max. outlet pressure 16 (regulated)
  - operating temperature -10...+60°C
  - media: lubricated or non-lubricated filtered compressed air (if using lubricated air, lubrication must not be interrupted)
  - can be installed in any position
  - mounted on wall with M4x40 screws or panel with M5 screws
  - weight 1600 g
