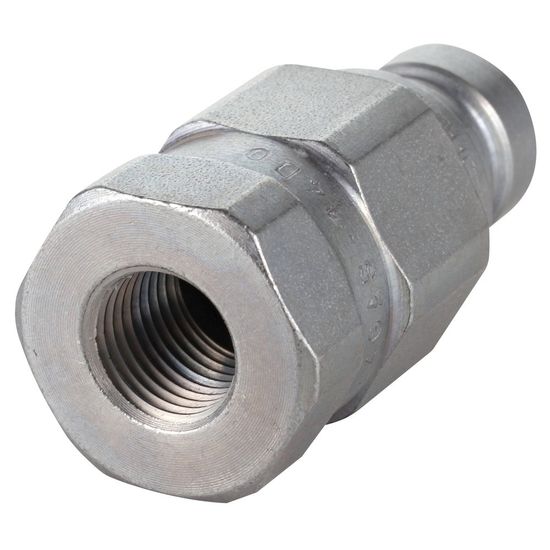

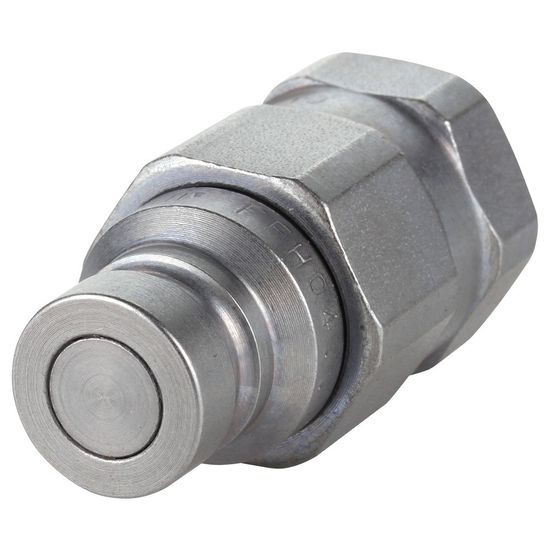

Flat-Face Quick Coupling Male 3/8" Bsp Faster

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFFH0638GASM

  ManufacturerFASTER

  Characteristics

  - flat-face quick coupling
  - interchangeable according to standard ISO 16028
  - cannot be connected/disconnected under pressure
  - working pressure 35 MPa
  - flow rate 50 l/min
  - burst pressure 140 MPa
  - coupling force required: about 150 N

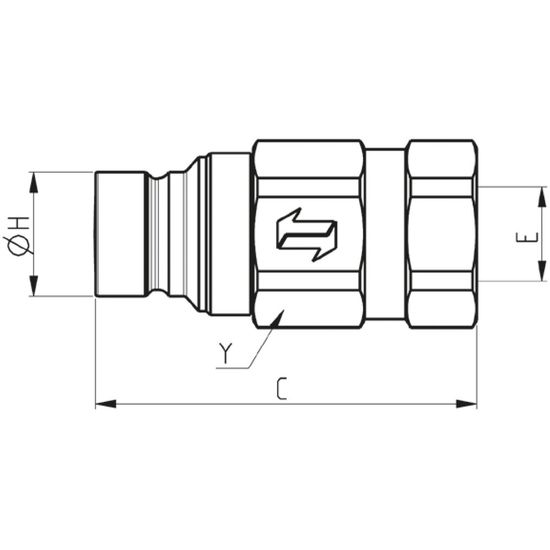

  - E thread 3/8" BSP female
  - C 68 mm
  - H 19.7 mm

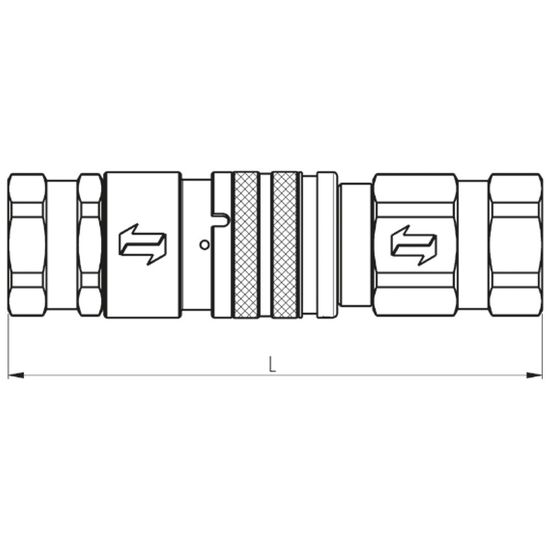

  - L 127 mm (frame + connector)
  - Y 30 mm
