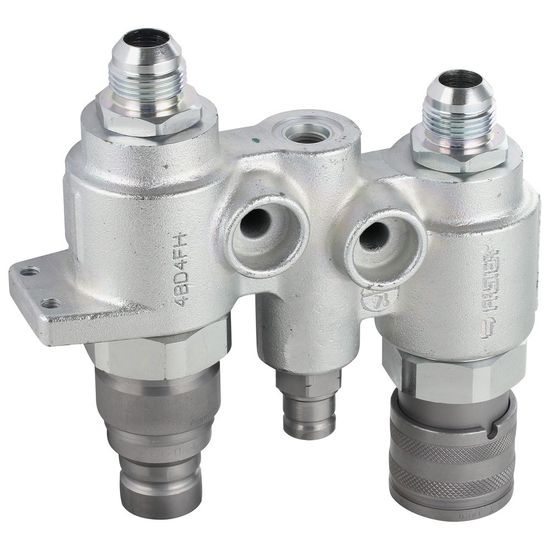

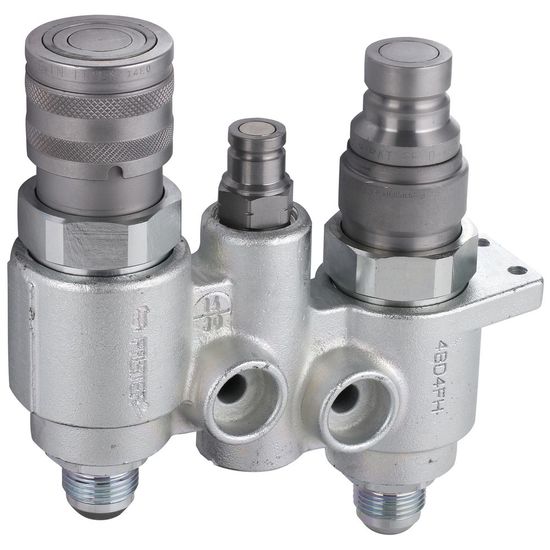

Flat-Face Quick Coupling Block 3/4" 4Bd Faster

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID4BD4FH121334S

  ManufacturerFASTER

  Characteristics

  - flat-face quick coupling block with three connections
  - interchangeable according to standard ISO 16028
  - can be pressurized when 3FFH coupling kit is used in the block
  - no leakage upon connection/disconnection
  - suitable for, among others, compact loaders (BOBCAT), tractor backhoes, utility vehicles
  - working pressure max. 35 MPa
  - flow 145 l/min
  - burst pressure min. 125 MPa

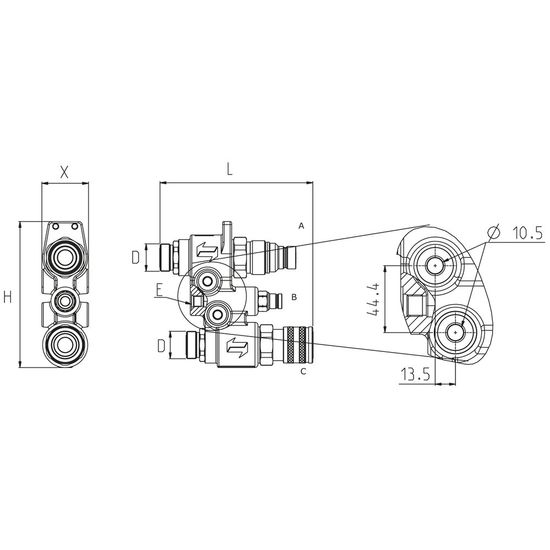

  - D thread 1 1/16" - 12 UN 2A male
  - E thread 9/16" - 18 UNF 2B female
  - L 189 mm
  - H 194 mm
  - X 62 mm
