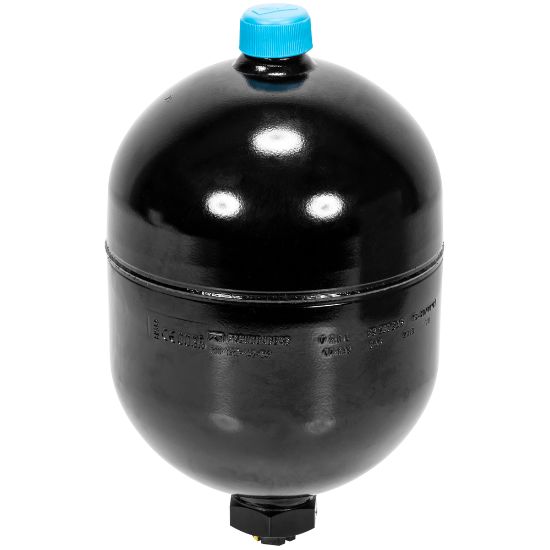

Diaphragm accumulator 2.0L Precharged 25Bar G1/2

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHPAK20025

  Manufacturer

  Characteristics

  - general battery size, used in many different applications
  - the diaphragm battery is suitable for systems that require battery sensitivity and rapid response to pressure changes
  - a diaphragm battery is also inexpensive and tolerates contamination well
  - thanks to the ECO film material, it is also suitable for Nordic conditions
  - max. operating pressure 250 bar
  - ECO film
  - volume 2.0 l
  - operating temperature -40...+80 °C
  - gas valve M28x1.5
  - filling pressure 25 bar (can be adjusted to desired level if needed)
  - connections G 3/4"

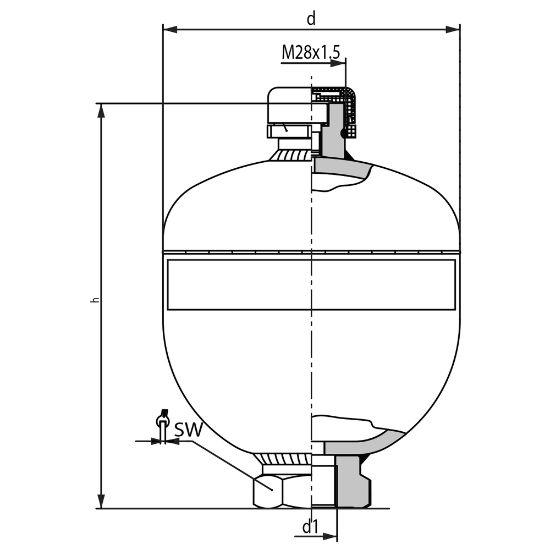

  Dimensions (mm):
  - h 255
  - d 156
  - d1 1 3/4"
  - SW 41
