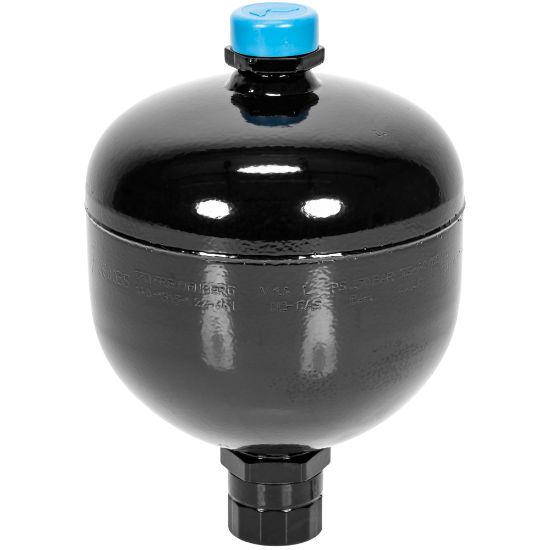

Diaphragm accumulator 1.4L Precharged 25Bar G1/2+M33

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHPAK14025

  Manufacturer

  Characteristics

  - general battery size, used in many different applications
  - the diaphragm battery is suitable for systems that require battery sensitivity and rapid response to pressure changes
  - a diaphragm battery is also inexpensive and tolerates contamination well
  - thanks to the ECO film material, it is also suitable for Nordic conditions
  - max. operating pressure 250 bar
  - ECO film
  - volume 1.4 l
  - operating temperature -40...+80 °C
  - gas valve M28x1.5
  - filling pressure 25 bar (can be adjusted to desired level if needed)
  - G 1/2" + M33x1.5

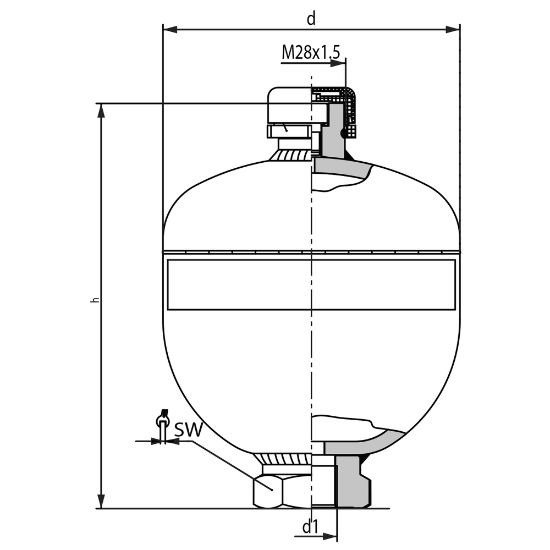

  Dimensions (mm):
  - h 209
  - d 147
  - d1 1/2" + M33x1.5
  - SW 41
