Throttle Valve 1/2" - max. 70 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH80565

  Manufacturer

  CharacteristicsType: VRB
  Max pressure: 300 bar

  Valve that regulates the flow in both directions.
  Turn the valve to adjust the flow and lock it with a nut.

  Technical specifications:
  - type: VRB
  - material galvanized steel
  - connection V C: G 1/2"
  - max. flow: 70 l/min
  - max. pressure: 300 bar

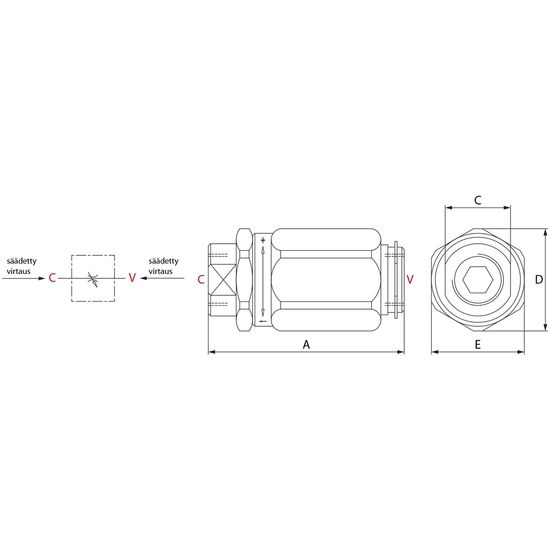

  Refer to the attached image for specific dimensions:
  - A: 80 mm
  - C: 27 mm
  - D: 42 mm
  - E: 38 mm
