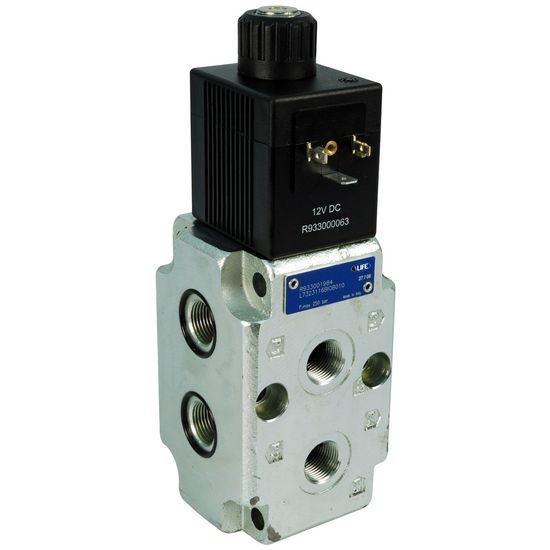

Selector valve 6/2, 1/2" 12V

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product IDFM2511

  ManufacturerAGRILIFE

  CharacteristicsMax. flow 70 l/min

  Electrical 6/2 valve with the possibility to control more functions with the same directional valve.
  Activate specific function by switching the solenoid valve.

  Technical specification:
  - voltage: 12 V
  - connections: 1/2" BSP
  - max. flow rate: 70 l/min
  - max. pressure: 310 bar

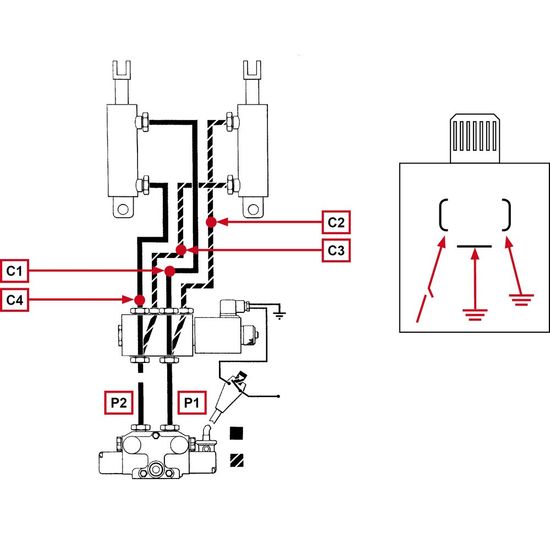

  - for hydraulic and electrical connection, see image

  Spare parts / Accessories:
  - spare solenoid FM2521
  - matching coupling FM2524, type DIN 93650, ISO 4400
