Flow control valve 3/4" - 120 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH81130

  Manufacturer

  CharacteristicsType: RFP3
  Max pressure: 350 bar

  The flow control valve maintains the set flow rate regardless of pressure.
  Excess flow is directed to the tank.

  Technical specification:
  - type: RFP3
  - material galvanized steel
  - BunaN seal
  - connection E P T: G 3/4"
  - inlet flow: 120 l/min
  - adjusted flow: 100 l/min
  - max pressure: 350 bar

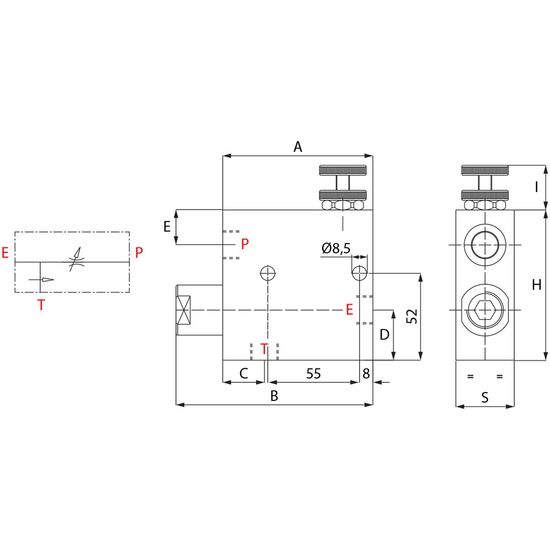

  Refer to the attached image for specific dimensions:
  - A: 90 mm
  - B: 122 mm
  - C: 27 mm
  - D: 36 mm
  - E: 19 mm
  - H: 102 mm
  - I: 40 mm
  - S: 50 mm
