Directional Control Valve 1/2" - max. 80 l/min DOUBLE-ACTING

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDP801A1

  ManufacturerHydro-Pack

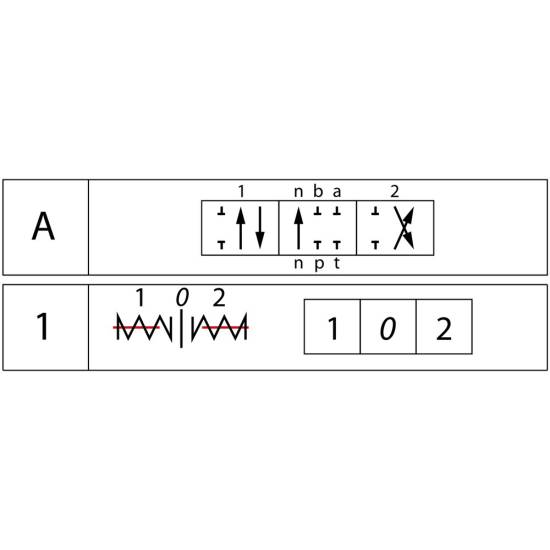

  CharacteristicsType: 1 section
  Double-acting

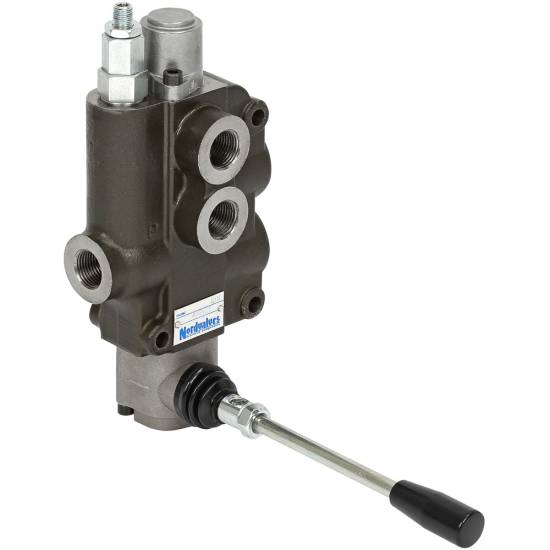

  P80 monoblock is a manual or cable-controlled directional valve that returns to center position.
  The valve package is equipped with a pressure limiter and check valve. The valve can be series-connected (N-port BSP 3/4").

  Technical specification:
  - type: 1 section
  - sections: double-acting
  - material: cast iron housing, sections of chrome steel
  - max. flow 80 l/min
  - max. working pressure 300 bar
  - max. return line pressure 50 bar
  - work and return ports BSP 1/2"
  - return port BSP 3/4"

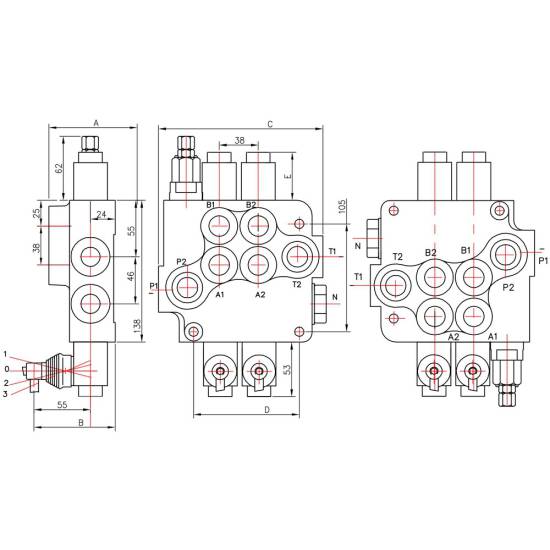

  - dimensions A: 65 mm
  - dimensions B: 79 mm
  - dimensions C: 107 mm
  - dimensions D: 65 mm
