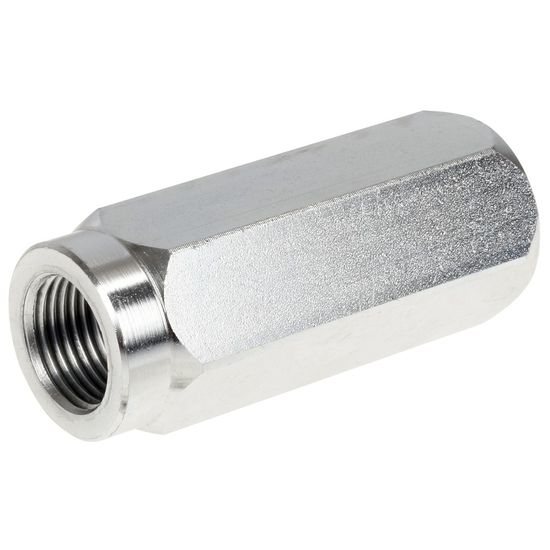

Check valves 3/4" - max. 110 l/min

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDH80620

  Manufacturer

  CharacteristicsType: VU
  Max. pressure: 350 bar

  Check valve that prevents flow in one direction and allows flow freely in the other direction.

  Technical specifications:
  - type: VU
  - material: galvanized steel
  - connection VC: G 3/4"
  - max flow: 110 l/min
  - max pressure: 350 bar
  - opening pressure: 0.5 bar

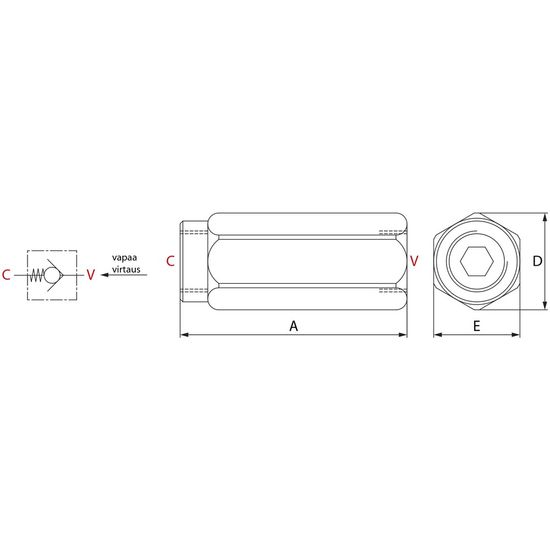

  Refer to the attached image for specific dimensions:
  - A: 88 mm
  - D: 40 mm
  - E: 36 mm
