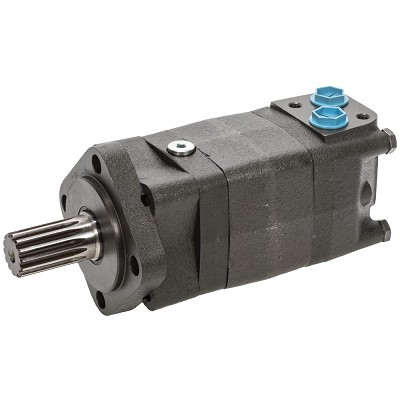

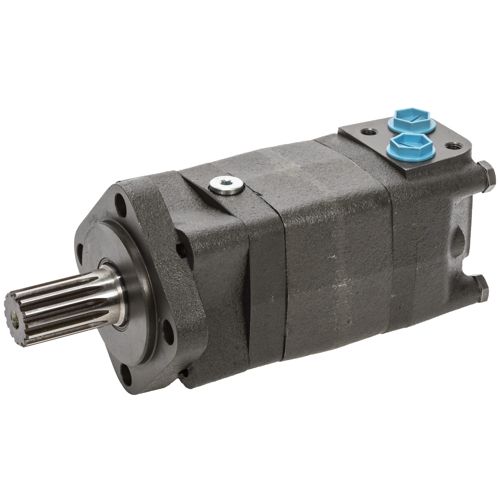

ORBITMOTOR MSY400 SH 14T SHAFT

• Info
• Stock status

  Product IDHMSY400SH

  Manufacturer

  Characteristics

  - reinforced and powerful motor capable of withstanding 15-20% more torque than a regular motor

  - applications such as sweeper and scrubber vehicles, situations requiring high power and high torque

  - interchangeable with e.g. Danfoss 151F2357

  - SAE A-4 mount with 4 bolts

  - connections G 1/2"

  - drain connection G 1/4"

  - exhaust air nozzle (disc valve)

  - SH-axis 1 1/4" 14 spline ANSI B92.1-1976

  - displacement 397 cm³/r

  - rotation 185 / intermittent 225 rpm

  - max. torque 90 / intermittent 97 daNm

  - max. power 11 / intermittent 12 kW

  - max. pressure continuous 210 / intermittent 250 / peak 300 bar

  - max. flow continuous 75 / intermittent 90 l/min

  - weight 13.3 kg
