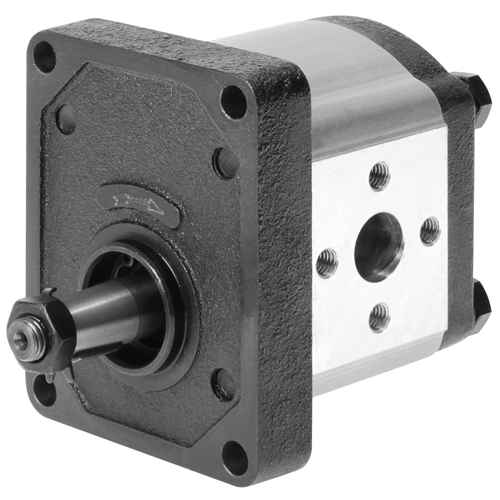

Hydraulic Pump 6.3 Group-2 Flange Coupling Clockwise

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHP2F06D

  Manufacturer

  Characteristics

  - aluminum housing
  - flange mounting
  - tapered shaft 1:8
  - right-hand rotation (clockwise) D (C)
  - displacement 6.3 cm³/r
  - max. 3500 rpm
  - max. pressure 250 bar
  - flow 8.69 l/min (at 1500 rpm)
  - flow 20.29 l/min (max. rpm)

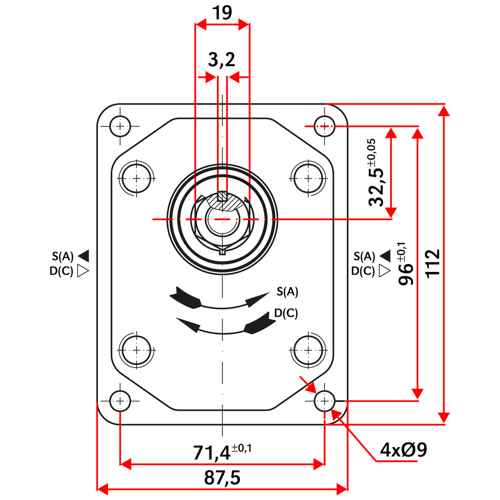

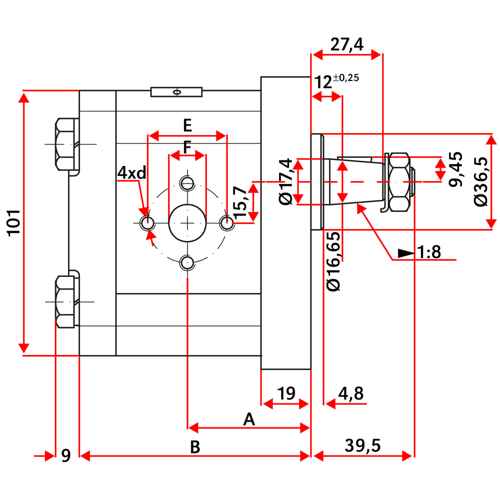

  - A 42.5 mm
  - B 80 mm
  - inlet E 30.2 mm / F 13.1 mm / d M6
  - outlet E 30.2 mm / F 13.1 mm / d M6
