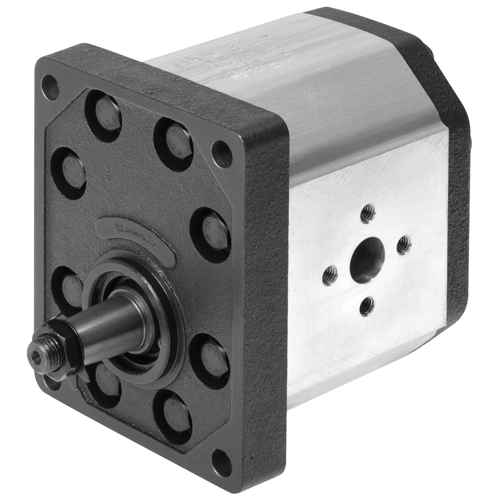

Hydraulic pump 55 Group-3 Flange coupling Clockwise

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHP3F55D

  Manufacturer

  Characteristics

  - aluminum housing
  - flange mounting
  - tapered shaft 1:8
  - clockwise rotation D (C)
  - displacement 55 cm³/r
  - max. 1750 rpm
  - max. pressure 200 bar
  - flow rate 78.4 l/min (at 1500 rpm)
  - flow rate 91.4 l/min (max. rpm)

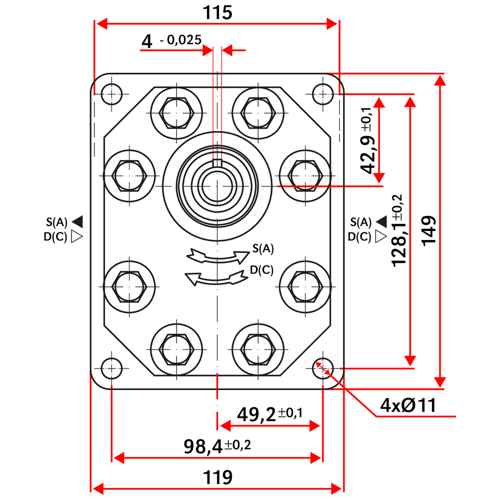

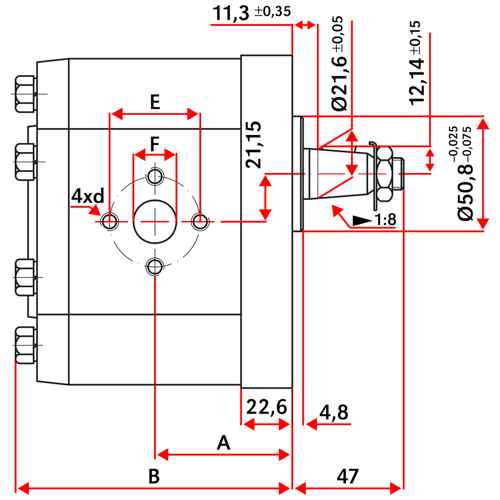

  - A 76.6 mm
  - B 157.9 mm
  - inlet E 51 mm / d M10 / F 27 mm
  - outlet E 40 mm / d M8 / F 19 mm
