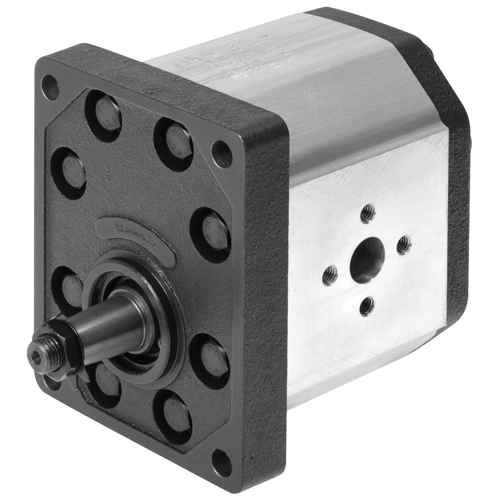

Hydraulic pump 36 Group-3 Flange connection Counterclockwise

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHP3F36S

  Manufacturer

  Characteristics

  - aluminum housing
  - flange mounting
  - tapered shaft 1:8
  - counterclockwise rotation S (A)
  - displacement 36 cm³/r
  - max. 2800 rpm
  - max. pressure 250 bar
  - flow 51.3 l/min (at 1500 rpm)
  - flow 95.8 l/min (max. rpm)

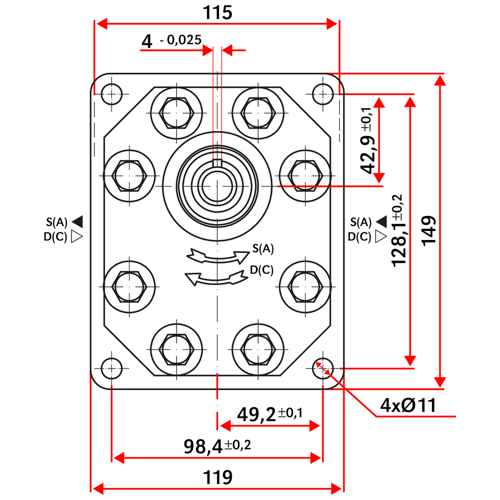

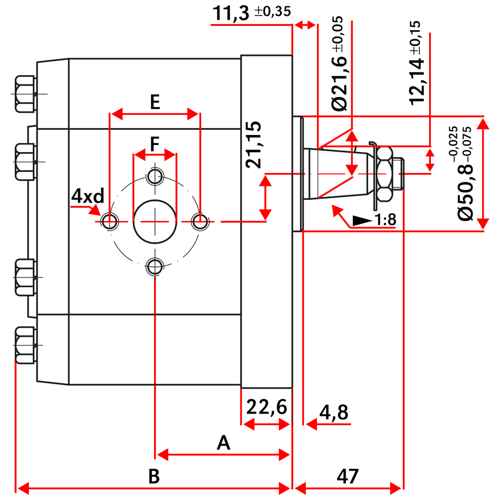

  - A 68.0 mm
  - B 140.5 mm
  - inlet E 51 mm / d M10 / F 27 mm
  - outlet E 40 mm / d M8 / F 19 mm
