Hydraulic pump 32 Group-3 Flange connection Clockwise

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHP3F32D

  Manufacturer

  Characteristics

  - aluminum housing
  - flange mounting
  - tapered shaft 1:8
  - clockwise rotation D (C)
  - displacement 32 cm³/r
  - max. 3000 rpm
  - max. pressure 250 bar
  - flow 45.1 l/min (at 1500 rpm)
  - flow 90.2 l/min (max. rpm)

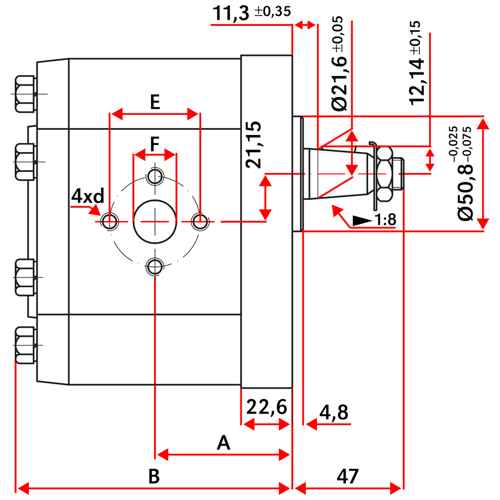

  - A 66.5 mm
  - B 137.3 mm
  - inlet E 51 mm / d M10 / F 27 mm
  - outlet E 40 mm / d M8 / F 19 mm
