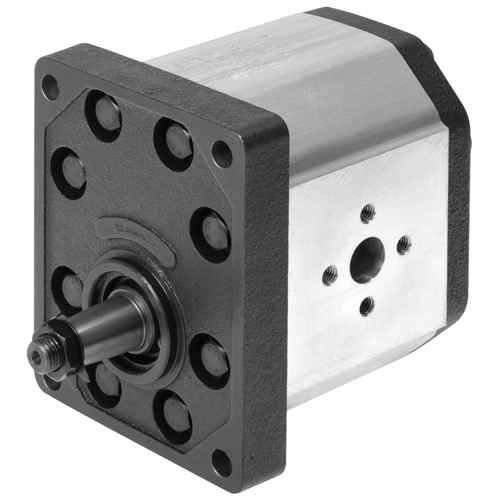

Hydraulic pump 25 Group-3 Flange connection Clockwise

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHP3F25D

  Manufacturer

  Characteristics

  - aluminum housing
  - flange mounting
  - tapered shaft 1:8
  - clockwise rotation right-handed (clockwise) D (C)
  - displacement 25 cm³/r
  - max. 3000 rpm
  - max. pressure 250 bar
  - flow rate 35.3 l/min (at 1500 rpm)
  - flow rate 70.5 l/min (max. rpm)

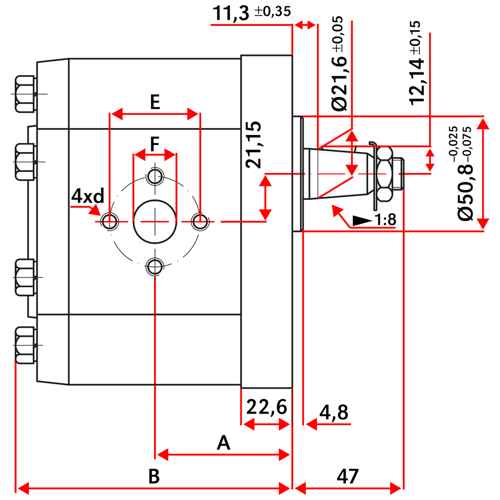

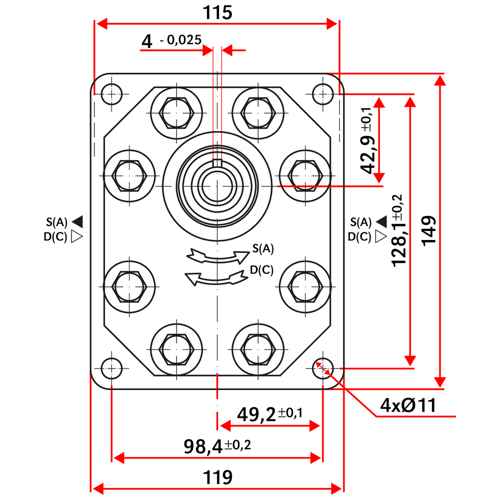

  - A 58.3 mm
  - B 121.1 mm
  - inlet E 40 mm / d M8 / F 19 mm
  - outlet E 40 mm / d M8 / F 19 mm
