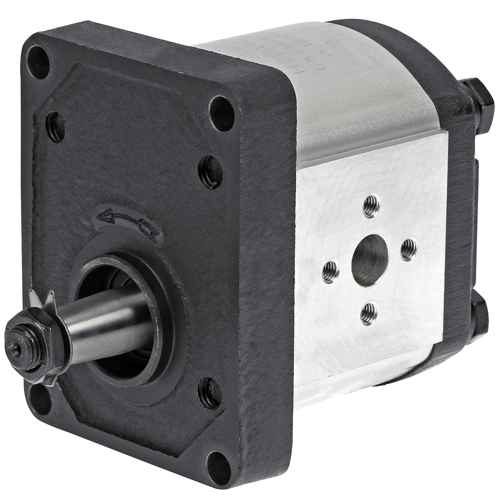

Hydraulic pump 25 Group-2 Flange connection Counterclockwise

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHP2F25S

  Manufacturer

  Characteristics

  - aluminum housing
  - flange mounting
  - tapered shaft 1:8
  - counterclockwise rotation S (A)
  - displacement 25 cm³/r
  - max. 2000 rpm
  - max. pressure 160 bar
  - flow 36.0 l/min (at 1500 rpm)
  - flow 48.0 l/min (max. rpm)

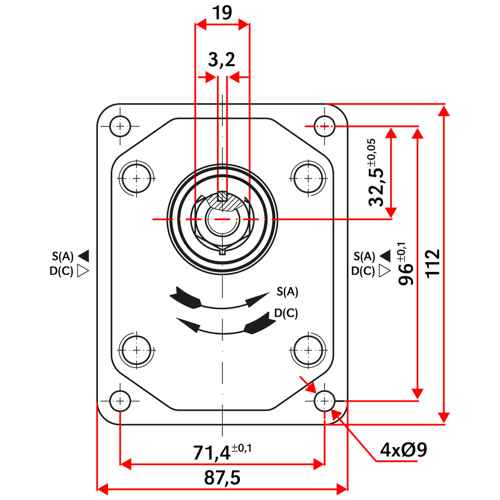

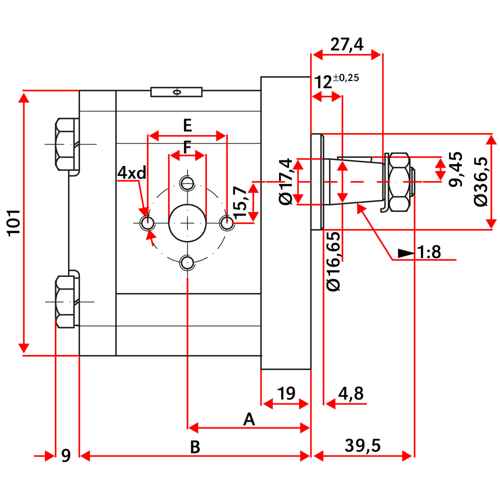

  - A 59.2 mm
  - B 113.4 mm
  - inlet E 39.7 mm / F 19 mm / d M8
  - outlet E 39.7 mm / F 19 mm / d M8
