Hydraulic pump 22.5 Group-3 Flange connection Counterclockwise

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHP3F22S

  Manufacturer

  Characteristics

  - aluminum housing
  - flange mounting
  - tapered shaft 1:8

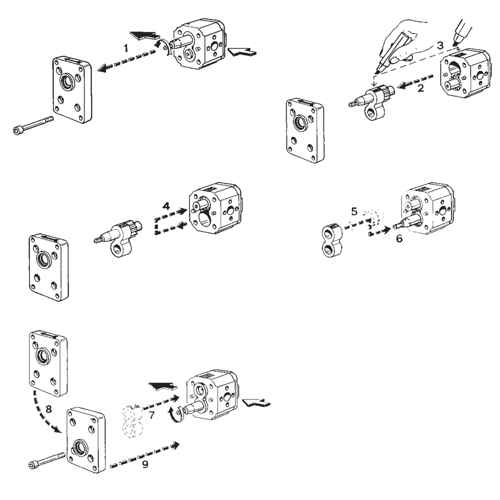

  - counterclockwise rotation left-handed (anticlockwise) S (A)
  - displacement 22.5 cm³/r
  - max. 3000 rpm
  - max. pressure 250 bar
  - flow rate 31.7 l/min (at 1500 rpm)
  - flow rate 63.5 l/min (max. rpm)

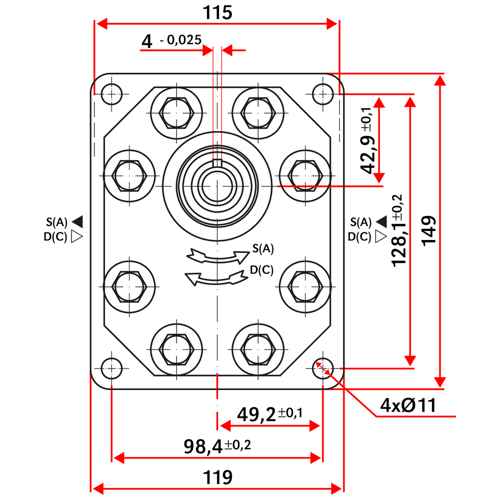

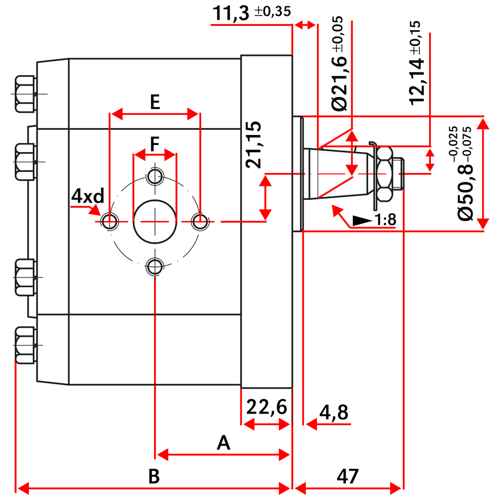

  - A 57.6 mm
  - B 119.7 mm
  - inlet E 40 mm / d M8 / F 19 mm
  - outlet E 40 mm / d M8 / F 19 mm
