Hydraulic pump 2-Series cm3/r 22.5 Clockwise

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHP2TK22D

  ManufacturerTK&K

  Characteristics

  - displacement cm3/r: 22.5 (1 cm3/r = 0.001 l)
  - max. constant pressure: 180 bar (P1)
  - max. temporary pressure: 190 bar (P2)
  - max. peak pressure: 210 bar (P3)
  - max. constant r/min: 2000 (P1)
  - max. temporary r/min: 2400 (P2)

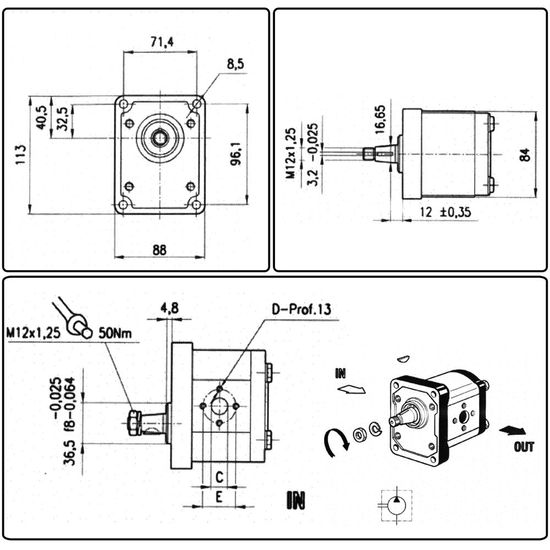

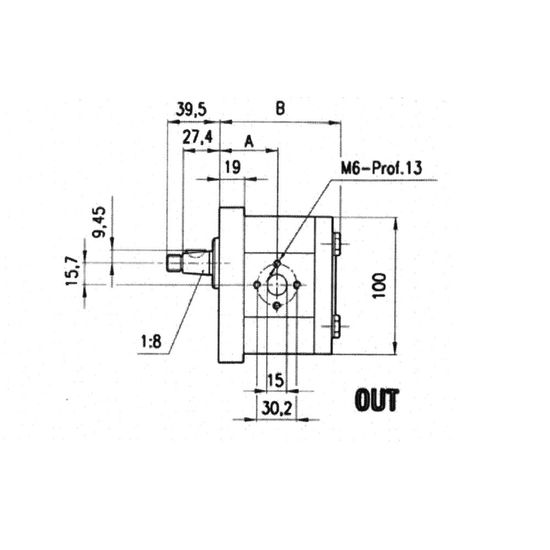

  - A: 56.5 mm
  - B: 117 mm
  - C: 20 mm
  - D: M8
  - E: 39.7 mm
  - weight 3.8 kg
