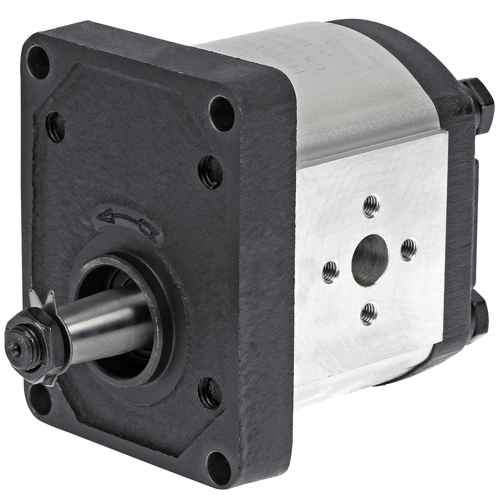

Hydraulic Pump 11 Group-2 Flange Coupling Counterclockwise

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHP2F11S

  Manufacturer

  Characteristics

  - aluminum housing
  - flange mounted
  - tapered shaft 1:8
  - counterclockwise rotation S (A)
  - displacement 11.3 cm³/r
  - max. 3500 rpm
  - max. pressure 250 bar
  - flow 15.76 l/min (at 1500 rpm)
  - flow 36.78 l/min (max. rpm)

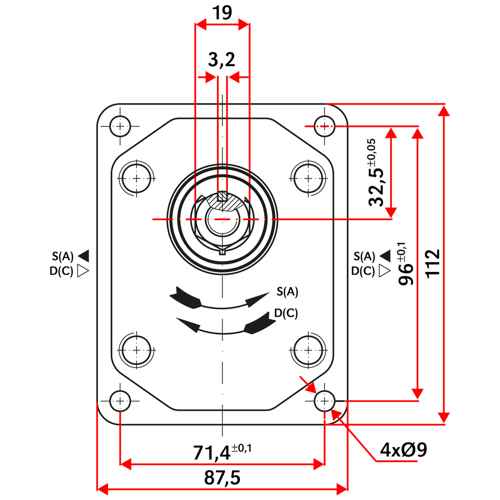

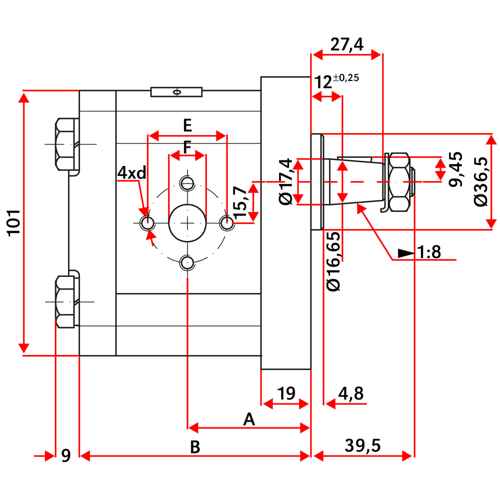

  - A 48 mm
  - B 91.1 mm
  - inlet E 39.7 mm / F 19 mm / d M8
  - outlet E 30.2 mm / F 14.2 mm / d M6
