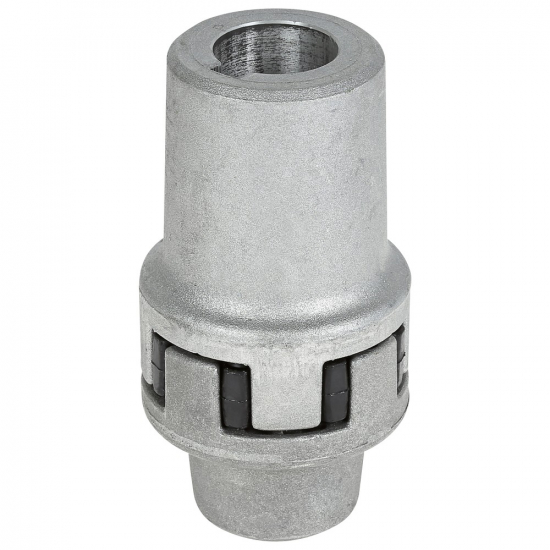

FLEXIBLE COUPLING KIT 63MM HE48 P+M+RUBBER

• Info
• Stock status

  Product IDH950181

  Manufacturer

  Characteristics- shaft Ø 28 mm
  - pump 3 series, tapered shaft 1:8 (euro)
  - type HE48
  - aluminium


  - type HE48
  - 3-series pump, tapered shaft 1:8 (euro)
  - electric motor IEC 100 - 122 (1500 rpm / 2.2 - 4 kW), shaft Ø 28 mm
  - diameter Ø 63 mm
  - length 119.5 mm
  - contains pump and motor side as well as intermediate rubber

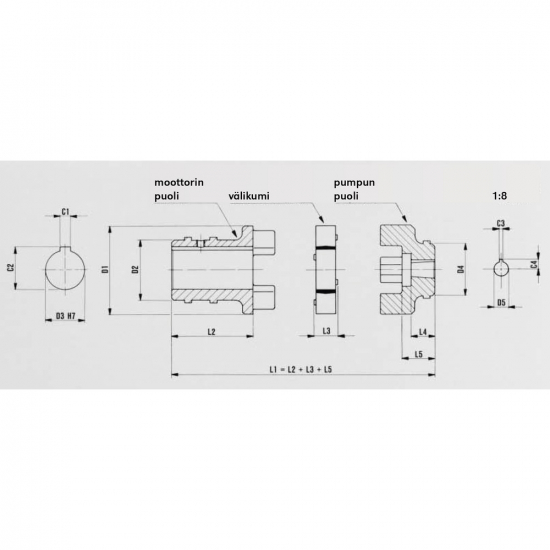

  Dimensions (mm):
  - D1 63
  - L1 119.5
  - D2 51
  - D3 28
  - L2 64.5
  - C1 8
  - C2 31.2
  - L3 19
  - D4 44
  - D5 18.36 (1:8)
  - L4 28
  - L5 36
  - C3 4
  - C4 12.5
