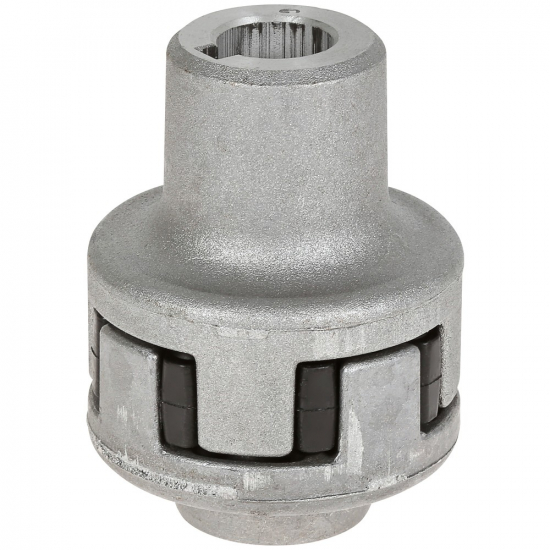

FLEXIBLE COUPLING KIT 63MM HE46 P+M+RUBBER

• Info
• Stock status

  Product IDH950182

  Manufacturer

  Characteristics- shaft Ø 19 mm
  - pump 2 series, tapered shaft 1:8 (euro)
  - type HE46
  - aluminium


  - type HE46
  - pump 2-series, tapered shaft 1:8 (euro)
  - electric motor IEC 80 (1500 rpm / 0.55 - 0.75 kW), shaft Ø 19 mm
  - diameter Ø 63 mm
  - length 85.5 mm
  - includes pump and motor side as well as intermediate rubber

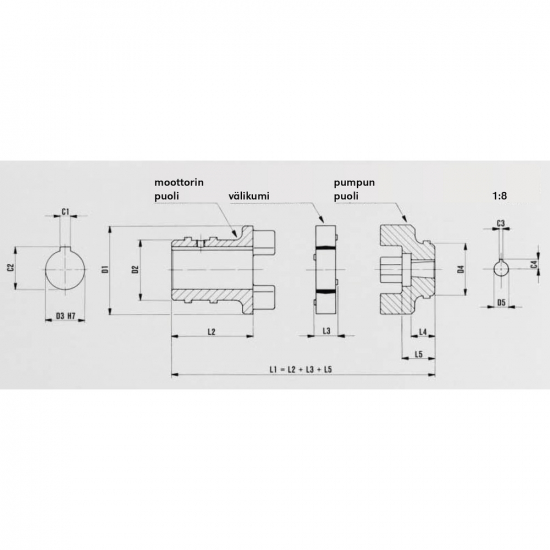

  Dimensions (mm):
  - D1 63
  - L1 85.5
  - D2 37
  - D3 19
  - L2 44.5
  - C1 6
  - C2 21.7
  - L3 19
  - D4 36
  - D5 14.3 (1:8)
  - L4 22
  - L5 22
  - C3 3.2
  - C4 9.7
