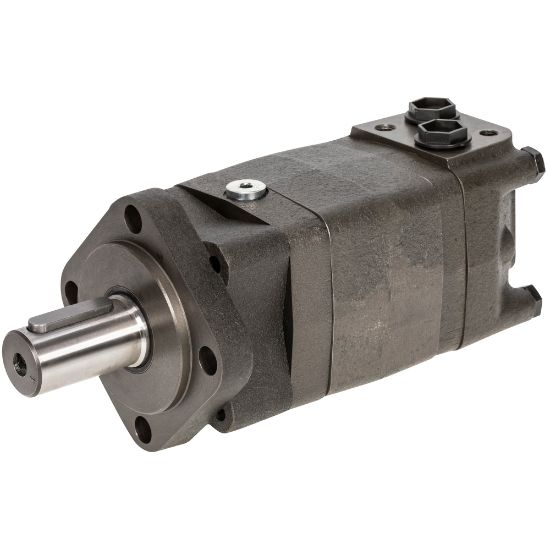

Hydraulic Motor Hmsy400

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMSY400

  Manufacturer

  CharacteristicsAxle diameter 32 mm
  Displacement 397 cm³

  - reinforced and powerful motor capable of withstanding 15-20% more torque than a regular motor
  - applications such as sweepers and brush cutters
  - replaceable with e.g. Danfoss 151F0605
  - SAE A-4 mounting with 4 bolts
  - connections G 1/2"
  - drain connection G 1/4"
  - exhaust valve (disc valve)
  - C-shaft 32 mm
  - displacement 397 cm³/r
  - speed 185 (225 rpm)
  - max torque 90 daNm (immediate 97 daNm)
  - max. continuous pressure 210 / intermittent 250 / peak 300 bar
  - max. flow continuously 75 / intermittent 90 l/min
  - weight 13.3 kg
