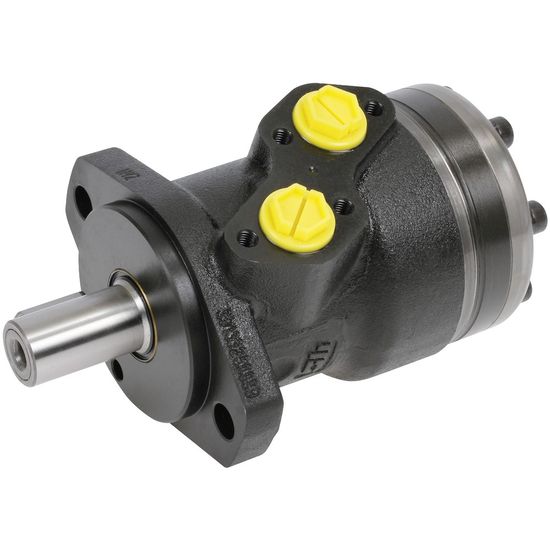

Hydraulic Motor Hmr 50

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMR050

  Manufacturer

  CharacteristicsAxle diameter 25 mm
  Displacement 51.6 cm³

  - 25 mm shaft with woodruff keyway
  - connections G 1/2"
  - drain connection G 1/4"
  - Danfoss OMR interchangeable
  - combines high torque with compact size
  - applications: for example, agricultural machinery, sand spreaders, hydraulic saws, slurry pumps
  - displacement 51.6 cm³/rev
  - max. speed continuously 775 / intermittent 969 rpm
  - max. continuous torque 103 / intermittent 126 Nm
  - max. continuous power 6.8 / intermittent 8.4 kW
  - max. pressure continuously 175 / intermittent 200 / peak 225 bar
  - max. differential pressure continuously 140 / intermittent 175 / peak 225 bar
  - max. flow continuously 40 / intermittent 50 l/min

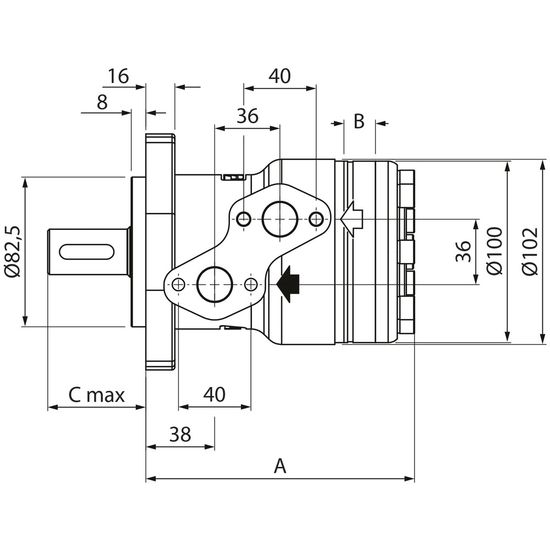

  - A 139.5 mm
  - B 9 mm
  - C 54 mm
  - weight 7.2 kg
