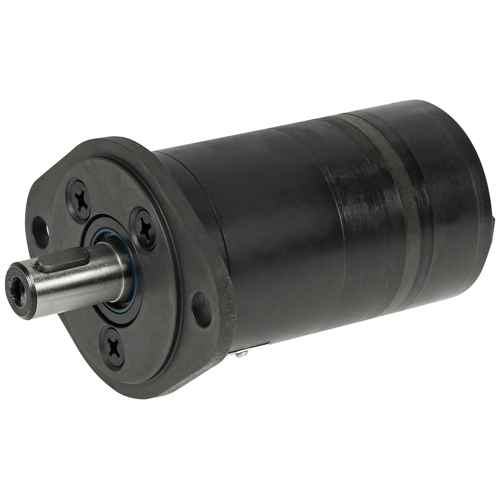

Hydraulic Motor Hmm 8

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMM008

  Manufacturer

  CharacteristicsAxle diameter 16 mm
  Displacement 8.2 cm³

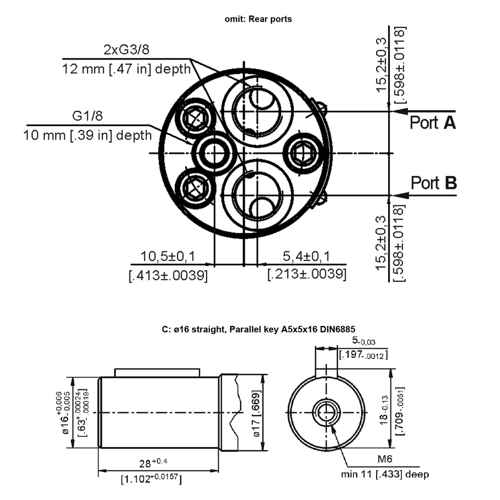

  - 16 mm shaft with feather key

  - connections G 3/8"

  - drainage connection G 1/8"

  - operating temperature -40...+140 °C

  - applications: for example, conveyors, screw conveyors in silos, sand spreaders, etc.

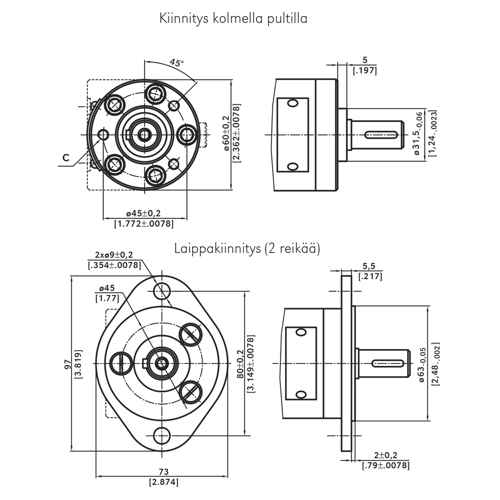

  - includes two-bolt mounting flange

  - displacement 8.2 cm³/rev

  - max. speed continuously 1950 / intermittent 2440 rpm

  - min. speed 50 rpm

  - max. torque continuously 1.1 / intermittent 1.5 / peak 2.1 Nm

  - max. power continuously 1.8 / intermittent 2.6 kW

  - max. pressure continuously 140 / intermittent 175 / peak 225 bar

  - max. flow continuously 16 / intermittent 20 l/min

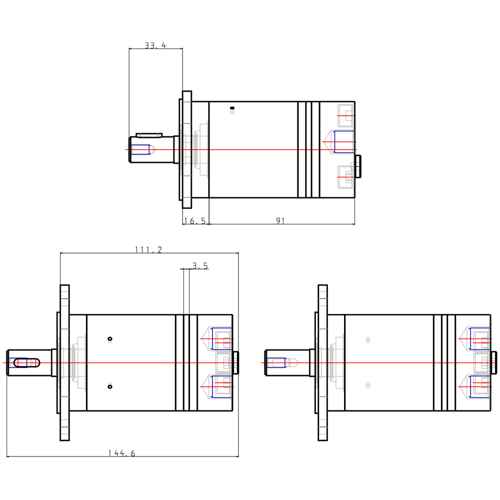

  - A 104 mm

  - B 3.5 mm

  - weight 1.9 kg
