Hydraulic Motor Hmm 31.8

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMM032

  Manufacturer

  CharacteristicsAxle diameter 16 mm
  Displacement 31.8 cm³

  - 16 mm shaft with woodruff keyway

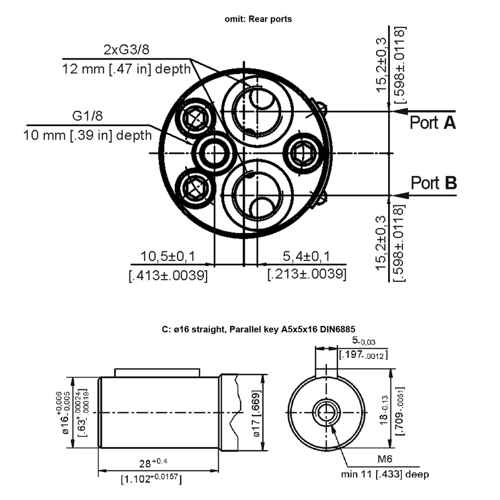

  - connections G 3/8"
  - drain connection G 1/8"
  - operating temperature -40...+140 °C
  - applications: for example, conveyor belts, screw conveyors in silos, sand spreaders, etc.

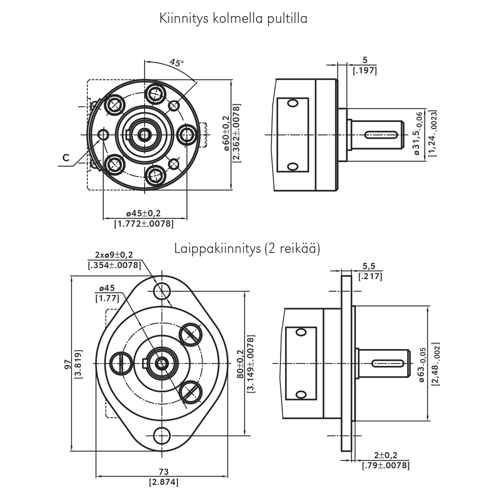

  - includes two-bolt mounting flange
  - displacement 31.8 cm³/rev
  - max. speed continuously 630 / intermittent 790 rpm
  - min. speed 30 rpm
  - max. continuous torque 4 / intermittent 5.7 / peak 6.4 Nm
  - max. continuous power 2.4 / intermittent 3.2 kW
  - max. pressure continuously 105 / intermittent 140 / peak 200 bar
  - max. flow continuously 20 / intermittent 25 l/min

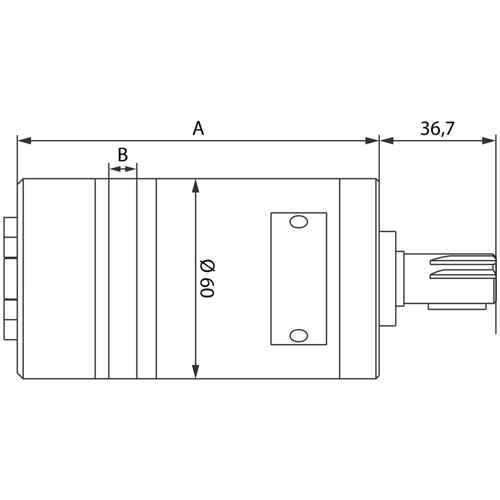

  - A 114 mm
  - B 13.5 mm
  - weight 2.2 kg
