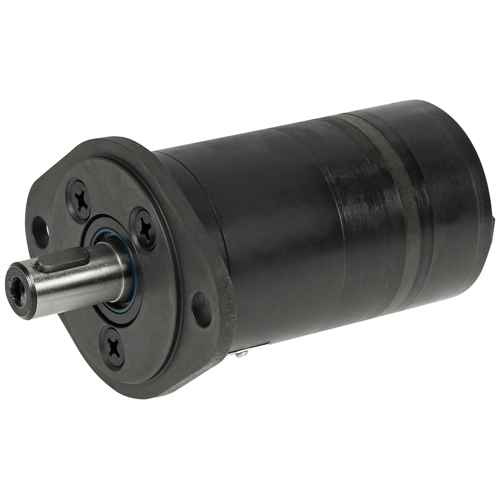

Hydraulic Motor Hmm 20

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMM020

  Manufacturer

  CharacteristicsAxle diameter 16 mm
  Displacement 20 cm³

  - 16 mm shaft with feather key

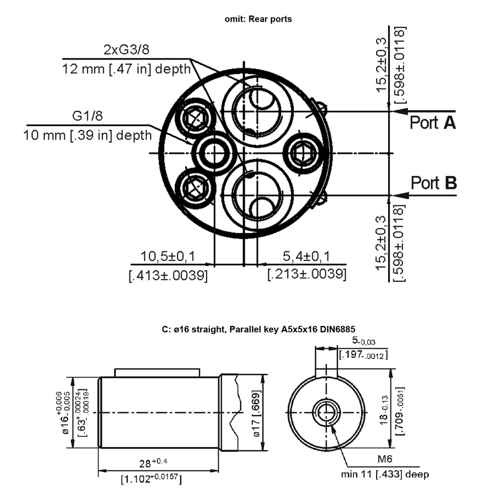

  - connections G 3/8"
  - drainage connection G 1/8"
  - operating temperature -40...+140 °C
  - applications: for example, conveyors, screw conveyors in silos, sand spreaders, etc.

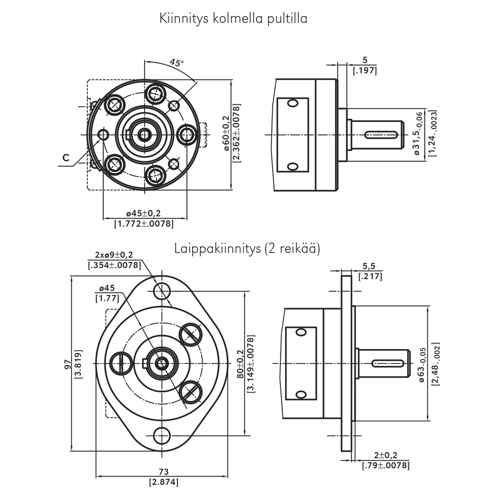

  - includes two-bolt mounting flange
  - displacement 20 cm³/rev
  - max. speed continuously 1000 / intermittent 1250 rpm
  - min. speed 30 rpm
  - max. torque continuously 2.5 / intermittent 3.5 / peak 5.1 Nm
  - max. power continuously 2.4 / intermittent 3.2 kW
  - max. pressure continuously 105 / intermittent 140 / peak 200 bar
  - max. flow continuously 20 / intermittent 25 l/min

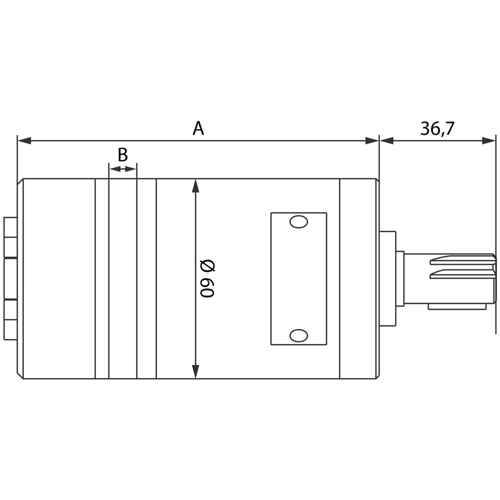

  - A 109 mm
  - B 8.5 mm
  - weight 2.1 kg
