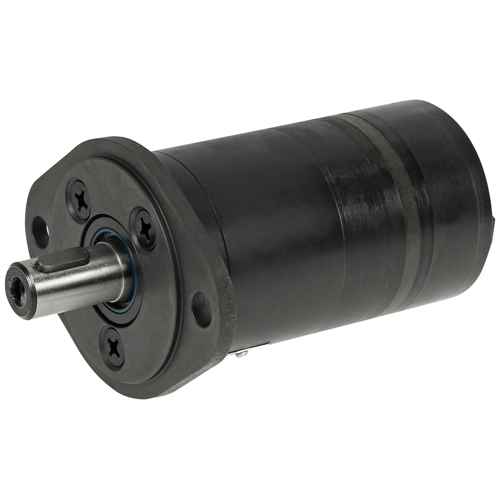

Hydraulic Motor Hmm 12.9

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMM012

  Manufacturer

  CharacteristicsAxle diameter 17 mm
  Displacement 12.9 cm³

  - 17 mm shaft with feather key

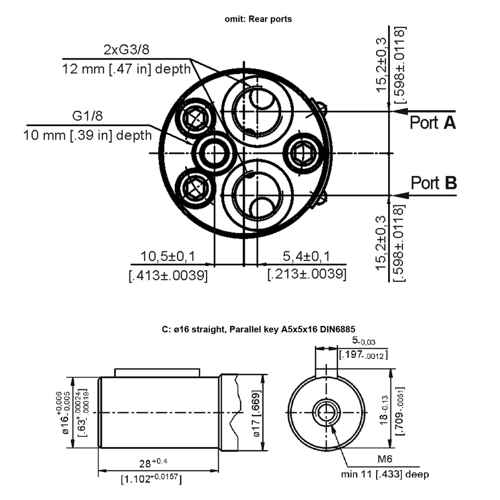

  - connections G 3/8"
  - drainage connection G 1/8"
  - operating temperature -40...+140 °C
  - applications: for example, conveyors, screw conveyors in silos, sand spreaders, etc.

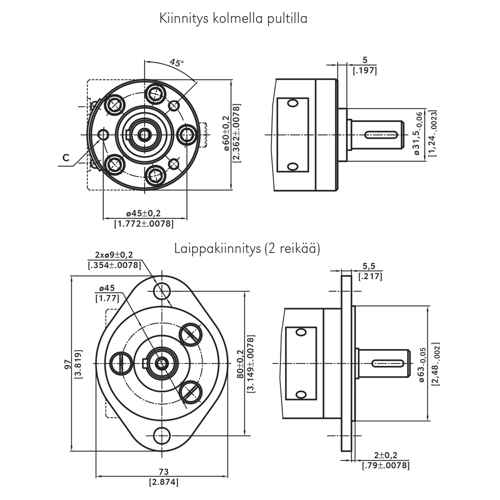

  - includes two-bolt mounting flange
  - displacement 12.9 cm³/rev
  - max. speed continuously 1550 / intermittent 1940 rpm
  - min. speed 40 rpm
  - max. torque continuously 1.6 / intermittent 2.3 / peak 3.3 Nm
  - max. power continuously 2.4 / intermittent 3.2 kW
  - max. pressure continuously 105 / intermittent 140 / peak 200 bar
  - max. flow continuously 20 / intermittent 25 l/min

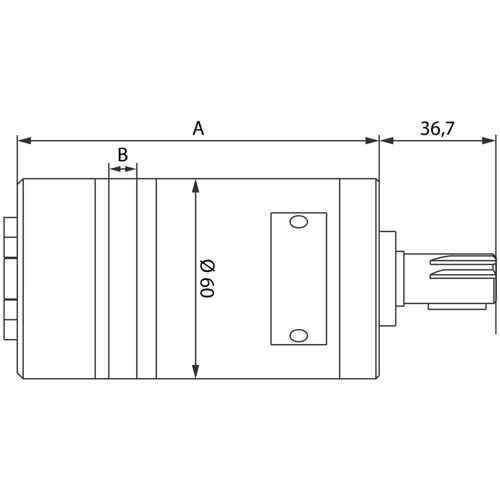

  - A 106 mm
  - B 5.5 mm
  - weight 2 kg
