Engine BMV 315

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID870001750

  Manufacturer

  CharacteristicsShaft-Ø (mm): 50
  Displacement (cm³): 333

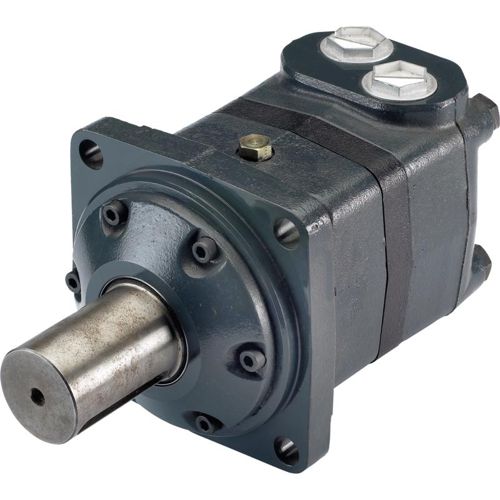

  Motor BMV 315, robust construction for intensive hydraulic systems.

  Axis-Ø (mm): 50

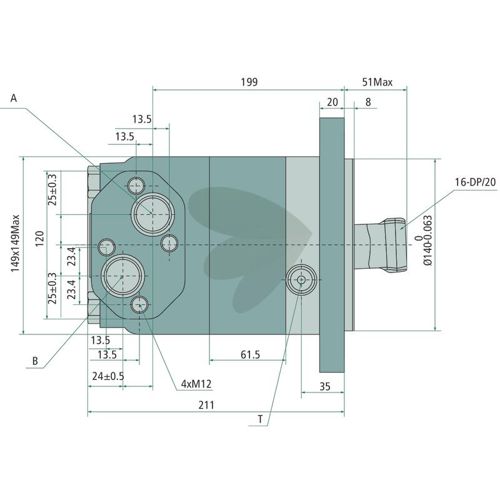

  L (mm): 217
  Pressure difference (bar): 200
  Volume (cm³): 333
  Max. flow rate (l/min): 160
  Connection A-B (BSP): 1"
  L1 (mm): 20
  Connection: G 1"
  Comparison no. Danfoss: 151B3100
  Max. torque (Nm): 920
  Max. speed (r/min): 510
  Input pressure (bar): 240
  Max. performance (kW): 38
  Leak oil connection: G 1/4"
  L2 (mm): 161.5
