Engine BMT 400

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID87000864

  Manufacturer

  CharacteristicsAxle-Ø (mm): 40
  Displacement (cm³): 410.9

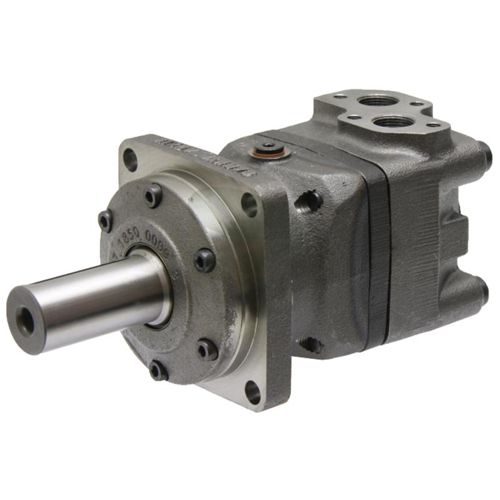

  Strong and reliable Motor BMT 400 for demanding industrial applications.

  Reference no. Danfoss: 151B3004
  Pressure difference (bar): 180
  Axis Ø (mm): 40
  Torque max. (Nm): 1080
  Connection A-B (BSP): 3/4"
  Performance max. (kW): 31.2
  Leak oil connection: G 1/4"
  Connection: G 3/4"
  Reference no. S.A.M. Hydraulics: HT S 400
  L (mm): 217
  Volume (cm³): 410.9
  L1 (mm): 27
  L2 (mm): 165.5
  Speed max. (v/min): 305
  Input pressure (bar): 210
  Volume flow max. (l/min): 125
