Engine BMT 315

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID87000863

  Manufacturer

  CharacteristicsShaft diameter (mm): 40
  Displacement (cm³): 326.3

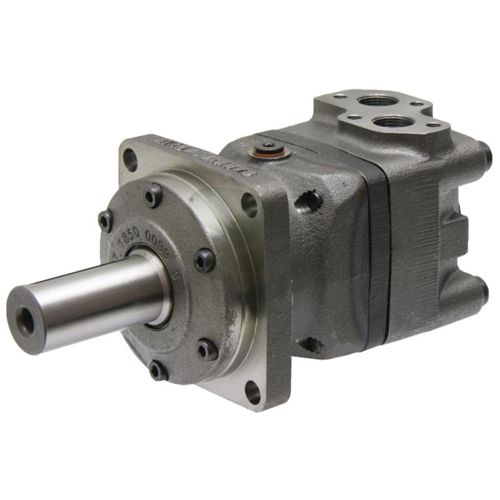

  Motor BMT 315 with high efficiency for hydraulic systems.

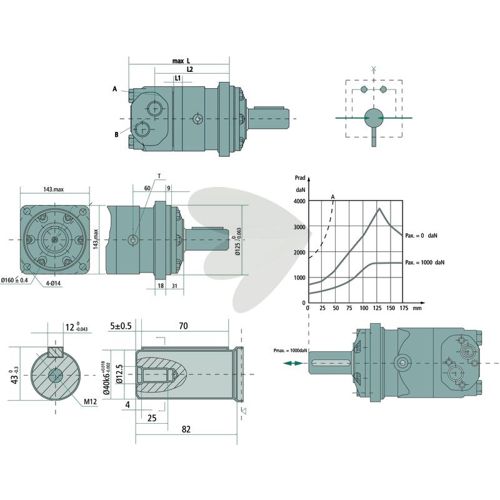

  L (mm): 210
  Input pressure (bar): 210
  Leak oil connection: G 1/4"
  Axis Ø (mm): 40
  Performance max. (kW): 34.9
  Volume flow max. (l/min): 125
  Reference no. Danfoss: 151B3003
  L1 (mm): 20
  L2 (mm): 158.5
  Torque max. (Nm): 950
  Speed max. (v/min): 380
  Connection A-B (BSP): 3/4"
  Connection: G 3/4"
  Reference no. S.A.M. Hydraulics: HT S 315
  Pressure difference (bar): 200
  Volume (cm³): 326.3
