Engine BMS 400

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID87000814

  Manufacturer

  CharacteristicsAxis-Ø (mm): 32
  Displacement (cm³): 394

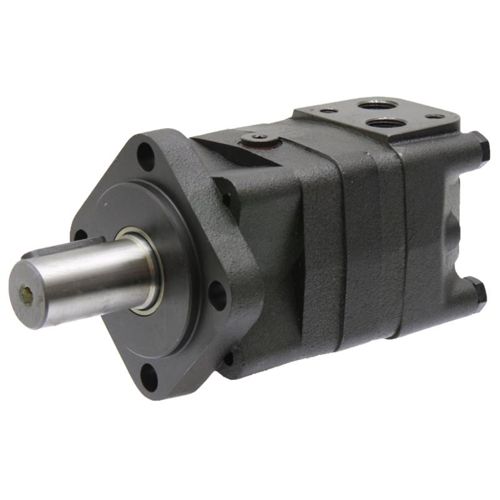

  Efficient Motor BMS 400, built to meet the demands of large industrial hydraulic systems.

  Pressure difference (bar): 160
  Volume (cm³): 394
  Connection A-B (BSP): 1/2"
  Max. performance (kW): 11
  Axis-Ø (mm): 32
  Comparison no. S.A.M. Hydraulics: HRS 400
  Comparison no. Danfoss: 151F0605
  L (mm): 223
  L2 (mm): 179.5
  Connection: G 1/2"
  Max. torque (Nm): 880
  Max. speed (r/min): 185
  Max. flow rate (l/min): 75
  Leak oil connection: G 1/4"
  L1 (mm): 69
  Input pressure (bar): 250
