  Product ID87000813

  Manufacturer

  CharacteristicsAxis-Ø (mm): 32
  Displacement (cm³): 311

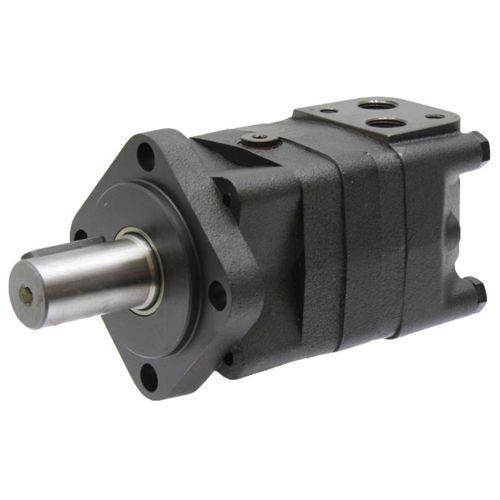

  Motor BMS 315, high capacity and reliability for demanding hydraulics.

  Axis-Ø (mm): 32
  Max. torque (Nm): 880
  Max. speed (r/min): 240
  Input pressure (bar): 250
  Comparison no. S.A.M. Hydraulics: HRS 315

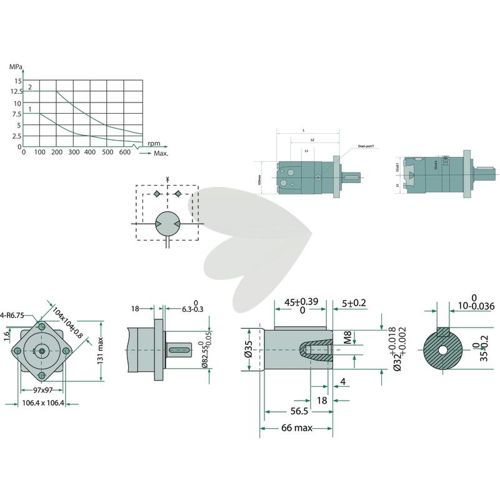

  L (mm): 208
  Volume (cm³): 311
  Leak oil connection: G 1/4"
  L2 (mm): 164.5
  Connection: G 1/2"
  Comparison no. Danfoss: 151F0506
  Connection A-B (BSP): 1/2"
  Max. performance (kW): 17
  Pressure difference (bar): 200
  Max. flow rate (l/min): 75
  L1 (mm): 24
