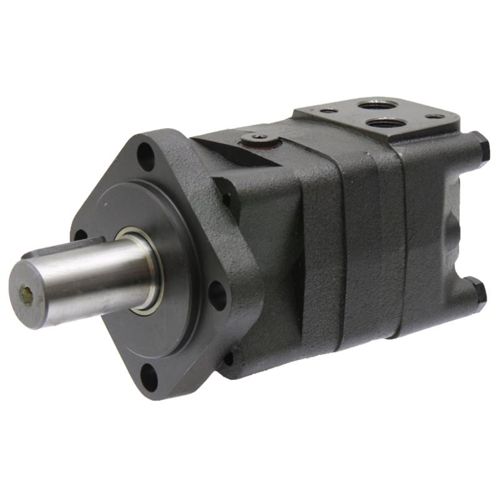

Engine BMS 100

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID87000808

  Manufacturer

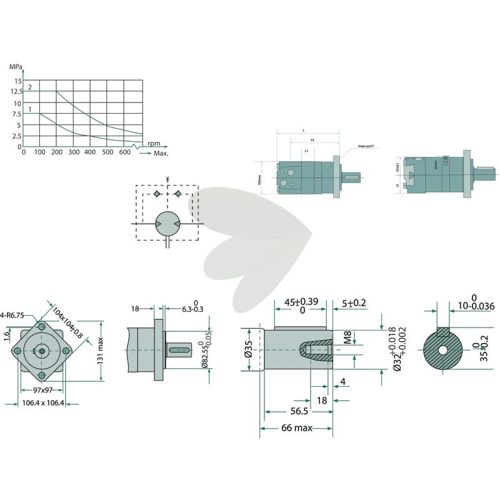

  CharacteristicsAxis-Ø (mm): 32
  Displacement (cm³): 100.8

  Strong Motor BMS 100, ideal for reliable power transmission.

  Max. speed (r/min): 748
  Input pressure (bar): 250
  Connection A-B (BSP): 1/2"
  Comparison no. Danfoss: 151F0501
  L (mm): 174
  L2 (mm): 130.5
  Connection: G 1/2"
  Volume (cm³): 100.8
  Max. torque (Nm): 290
  Pressure difference (bar): 205
  Max. performance (kW): 18
  Max. flow rate (l/min): 75
  Leak oil connection: G 1/4"
  L1 (mm): 20
  Axis-Ø (mm): 32
  Comparison no. S.A.M. Hydraulics: HRS 100
